Operation Manual – Mirroring
Quidway S5600 Series Ethernet Switches-Release 1510 Chapter 1 Mirroring Configuration
Huawei Technologies Proprietary
1-14
Data monitoring device
PC1
Switch A
Switch B
Switch C
GE1/0/1
GE1/0/1
GE1/0/2
GE1/0/1
GE1/0/2
GE1/0/2

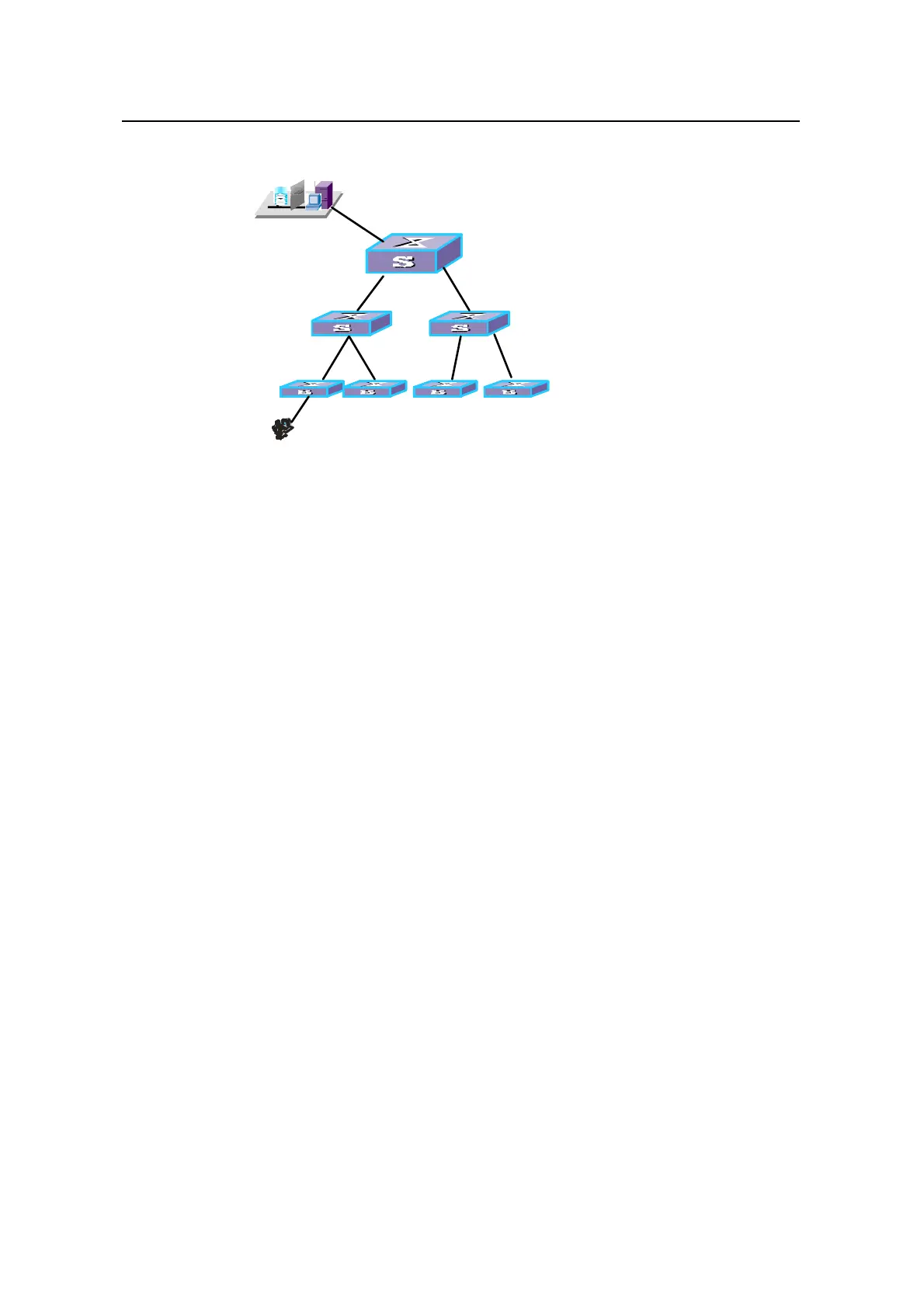

Figure 1-3 Network diagram for RSPAN
3) Configuration procedure
# Configure Switch C.
<Quidway> system-view
[Quidway] vlan 10
[Quidway-vlan10] remote-probe vlan enable
[Quidway-vlan10] quit
[Quidway] interface GigabitEthernet 1/0/1
[Quidway-GigabitEthernet1/0/1] port trunk permit vlan 10
[Quidway-GigabitEthernet1/0/1] quit
[Quidway] mirroring-group 1 remote-source
[Quidway] mirroring-group 1 mirroring-port GigabitEthernet 1/0/2 inbound
[Quidway] mirroring-group 1 reflector-port GigabitEthernet 1/0/3
[Quidway] mirroring-group 1 remote-probe vlan 10
[Quidway] display mirroring-group remote-source
mirroring-group 1:
type: remote-source
status: active
mirroring port:
GigabitEthernet1/0/2 outbound
reflector port: GigabitEthernet1/0/3
remote-probe vlan: 10
# Configure Switch B.
<Quidway> system-view
[Quidway] vlan 10
[Quidway-vlan10] remote-probe vlan enable
[Quidway-vlan10] quit
