1.4.2 Network diagram
Switch 1
PC1 192.168.1.1
192.168.1.2 10.2.72.39
PC2 10.2.72.1
UDP-Helper Server
Switch 2
Switch 1
PC1 192.168.1.1
192.168.1.2 10.2.72.39
PC2 10.2.72.1
UDP-Helper Server
Switch 2

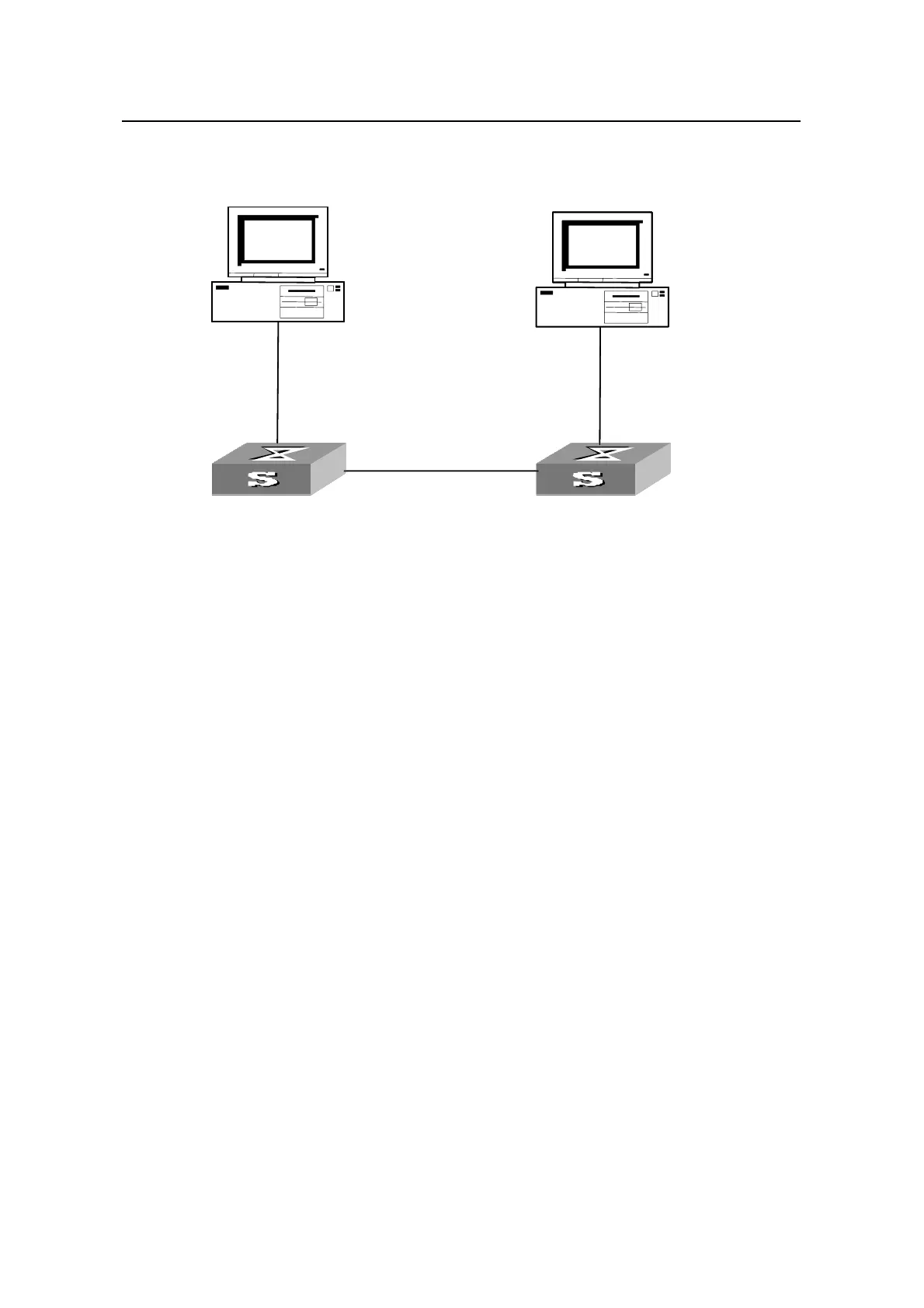

Figure 1-1 Network diagram for UDP-Helper configuration
1.4.3 Configuration procedure
# Enable UDP-Helper on Switch1.
<Quidway> system-view
[Quidway] udp-helper enable
# Specify port 137 to be the UDP port for forwarding broadcast UDP packets. Port 137
is the default UDP port, as prompted in the command line.
[Quidway] udp-helper port 137
Port has been configured. Please check the port again.
# Specify the destination server to which UDP packets are to be forwarded.
[Quidway] interface Vlan-interface 20
[Quidway-Vlan-interface20] udp-helper server 10.2.72.1
