Operation Manual – VLAN VPN
Quidway S5600 Series Ethernet Switches-Release 1510 Chapter 2
BPDU Tunnel Configuration
Huawei Technologies Proprietary
2-4
II. Network diagram
GE1/0/1
GE1/0/2
GE1/0/3
GE1/0/4
Customer 2
Provider 2
GE1/0/1
GE1/0/2
GE1/0/3
GE1/0/4
Customer 2
GE1/0/1
GE1/0/2
GE1/0/3
GE1/0/4
Customer 2
Provider 2

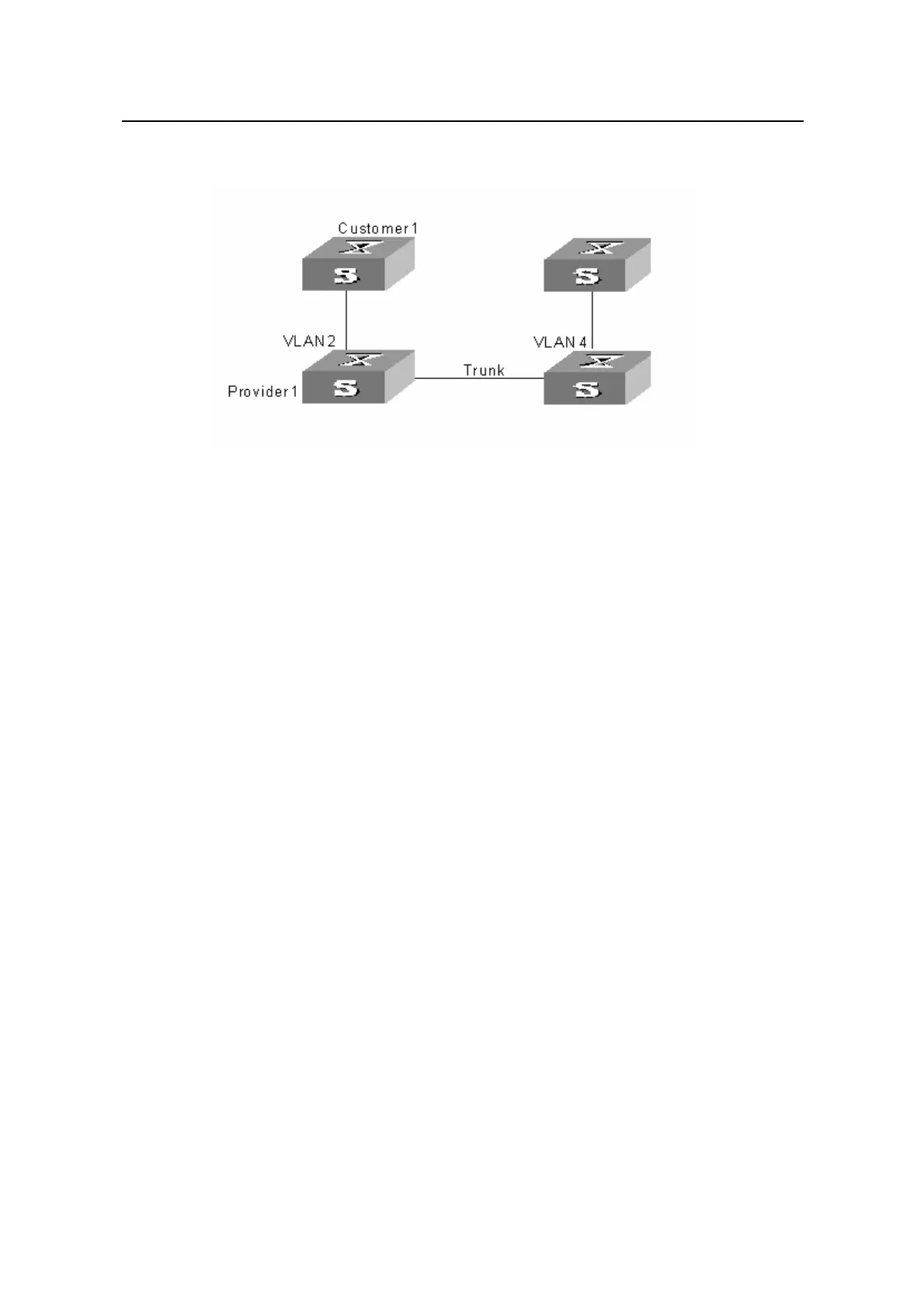

Figure 2-4 Network diagram for BPDU Tunnel configuration
III. Configuration procedure
1) Configure Provide1.
# Enable NDP on GigabitEthernet1/0/1 port.
<Quidway> system-view
[Quidway] interface GigabitEthernet 1/0/1
[Quidway-GigabitEthernet1/0/1] ndp enable
# Enable the BPDU Tunnel function on GigabitEthernet1/0/2 port.
[Quidway-GigabitEthernet1/0/1] quit
[Quidway] interface GigabitEthernet 1/0/2
[Quidway-GigabitEthernet1/0/2] bpdu-tunnel uplink
[Quidway-GigabitEthernet1/0/2] bpdu-tunnel ndp
2) Configure Provider2.
# Enable the BPDU Tunnel function for NDP packets on GigabitEthernet1/0/3 port.
<Quidway> system-view
[Quidway] interface GigabitEthernet 1/0/3
[Quidway-GigabitEthernet1/0/3] bpdu-tunnel uplink
[Quidway-GigabitEthernet1/0/3] bpdu-tunnel ndp
