Husqvarna TE511 - Spark Plug Recess Ignition Coil; Spark Plug Recess Ignition Coil Disassembly; Spark Plug Recess Ignition Coil Assembly

F1.10
H01714
H01850
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

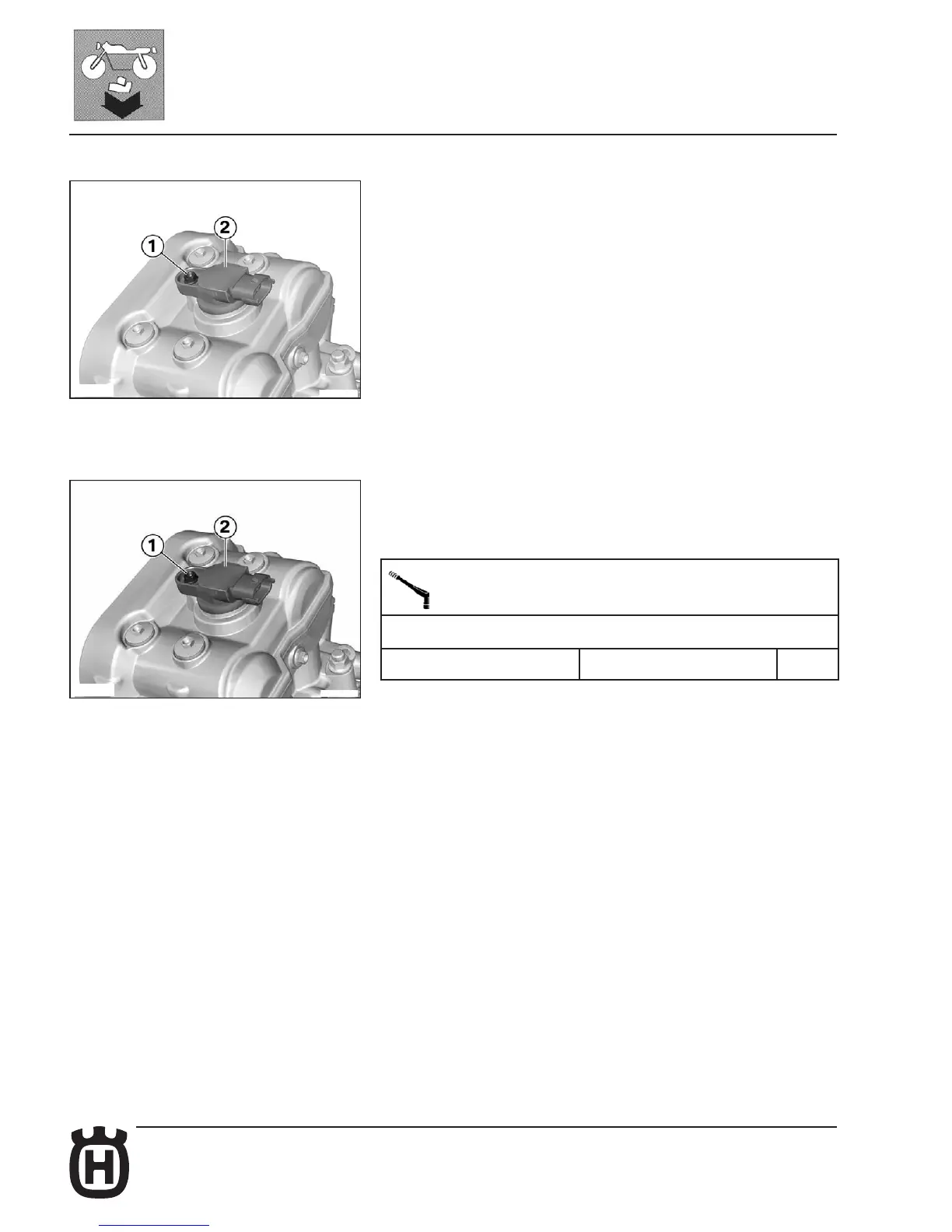

Spark plug recess ignition coil disassembly
• Disassemble the following parts:
- Screw (1)
- Spark plug recess ignition coil (2)
Spark plug recess ignition coil assembly
• Fit spark plug recess ignition coil (2).
• Fit screw (1).
Tightening torque gures
Ignition coil inside engine
M5 x 16 - 10.9 6 Nm / 0,6 Kgm / 4,43 ft/lb
Spark plug recess ignition coil
