Husqvarna TE511 - Throttle Body Removal

E.12
H02430
3
4
H02432
1
2
H02433
5
6
H02434
7
8
1
st
edition (08-2010) _Rev. 11-2010
GENERAL PROCEDURES

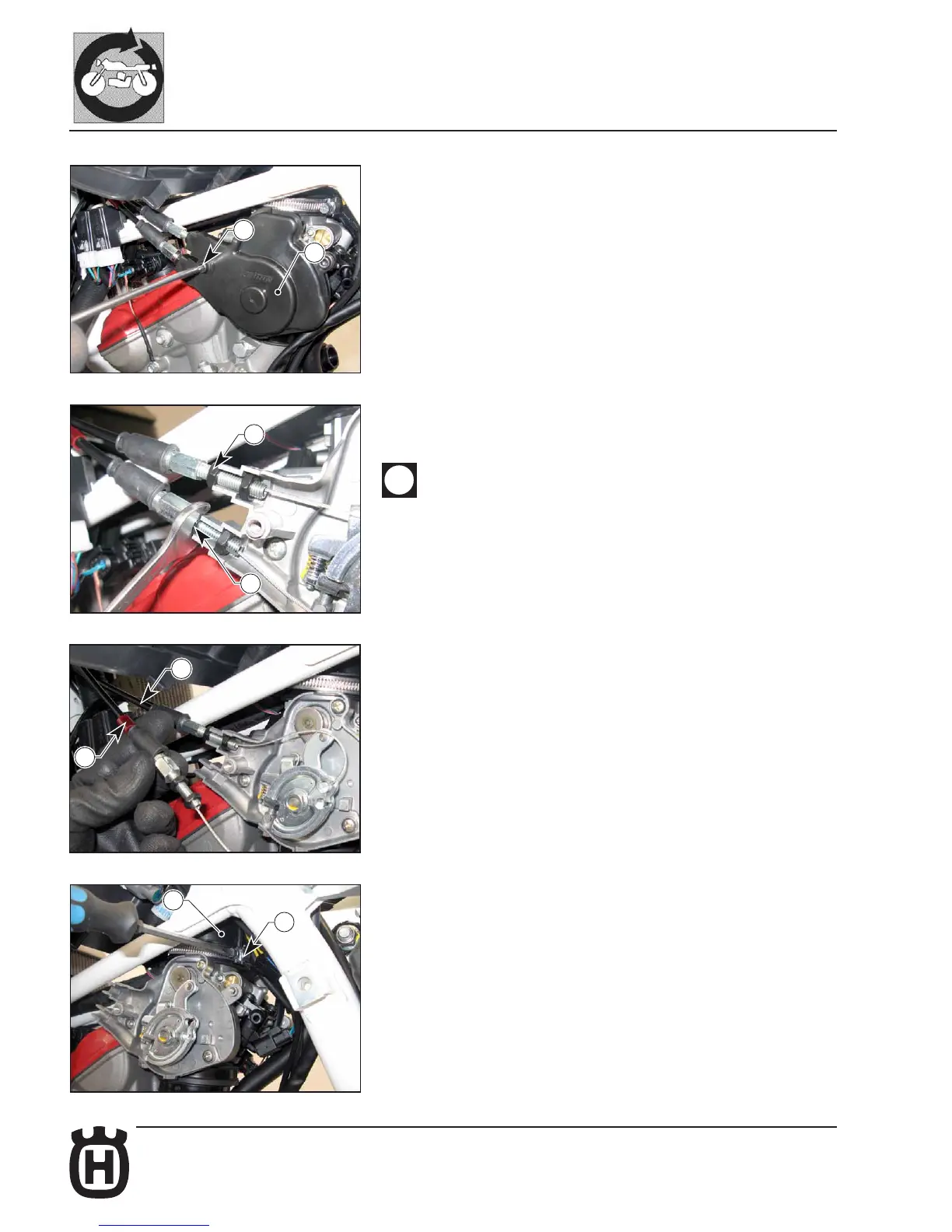

Throttle body removal.
- Remove lower fuel tank as described in the relevant paragraph.
- Remove the air lter as described in the relevant paragraph.
- Use a 4 mm Allen wrench to loosen the screw (1) and remove the cover (2)
of the throttle body.
- Using a 10 mm Allen wrench, loosen nuts (3) and (4) and remove cables (5)
and (6).
On reassembly, cable (6) with the RED ring shall be tted onto throttle
body lower side.
- Loosen clamp (7) of intake coupling (8), squeeze hose coupling on the inner
side (lter box side) until it comes out of its seat.
Using a screwdriver, prise until it is removed from throttle body.
