Husqvarna TE511 - Removing Clutch Plates; Clutch Hub Disassembly; Clutch Housing Disassembly

F1.27
H01734
H01735
H01736
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

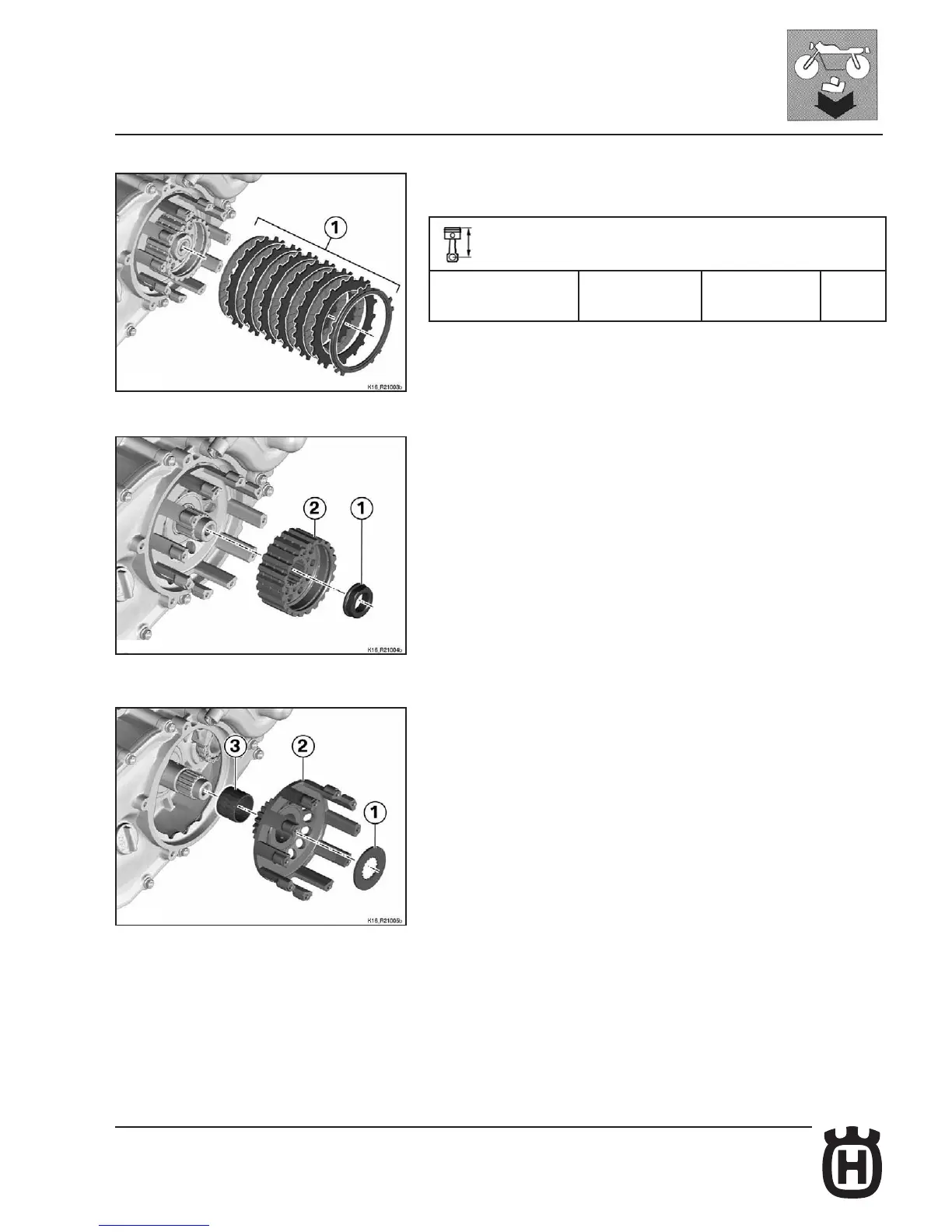

Removing clutch plates
• Remove clutch plates pack (1).
Technical specications
Clutch plates number 6 steel plates
6 lined plates
Clutch hub disassembly
• Remove nut (1).
• Remove hub (2).
Clutch housing disassembly
• Disassemble the following parts:
• Thrust washer (1)
• Clutch housing (2)
• Bearing (3)
