Husqvarna TE511 - Rocker Arm Disassembly; Rocker Arm Shaft Disassembly

F1.47
H01912
H01914
H01915
H06520
1
2
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

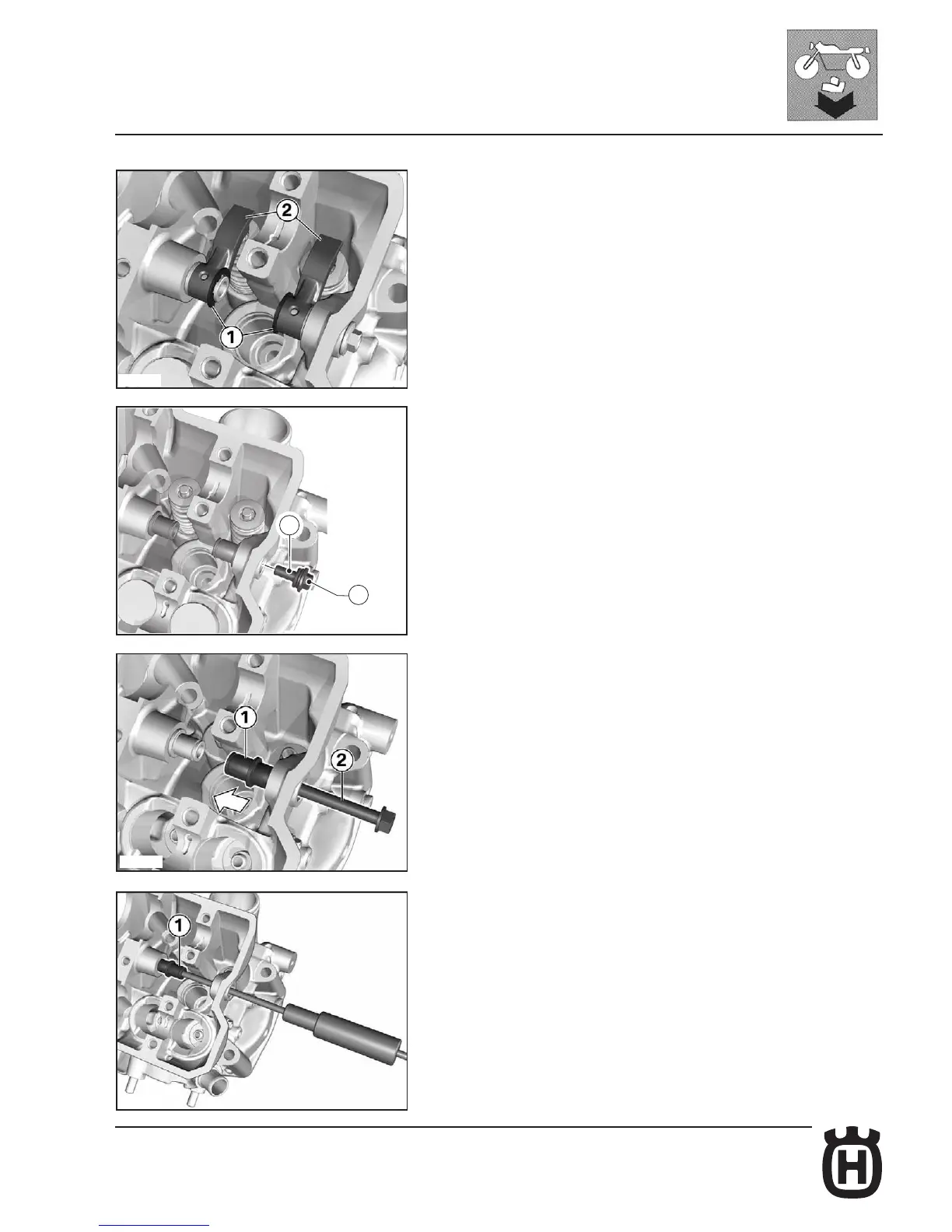

Rocker arm disassembly
• Remove stop rings (1) and rocker arms (2).
Rocker arm shaft disassembly
• Remove the screw (1) with the O-ring (2).
• Remove left rocker arm shaft (1) with a suitable tool (2).
• Remove right rocker arm shaft (1) using a suitable sliding hammer puller.
