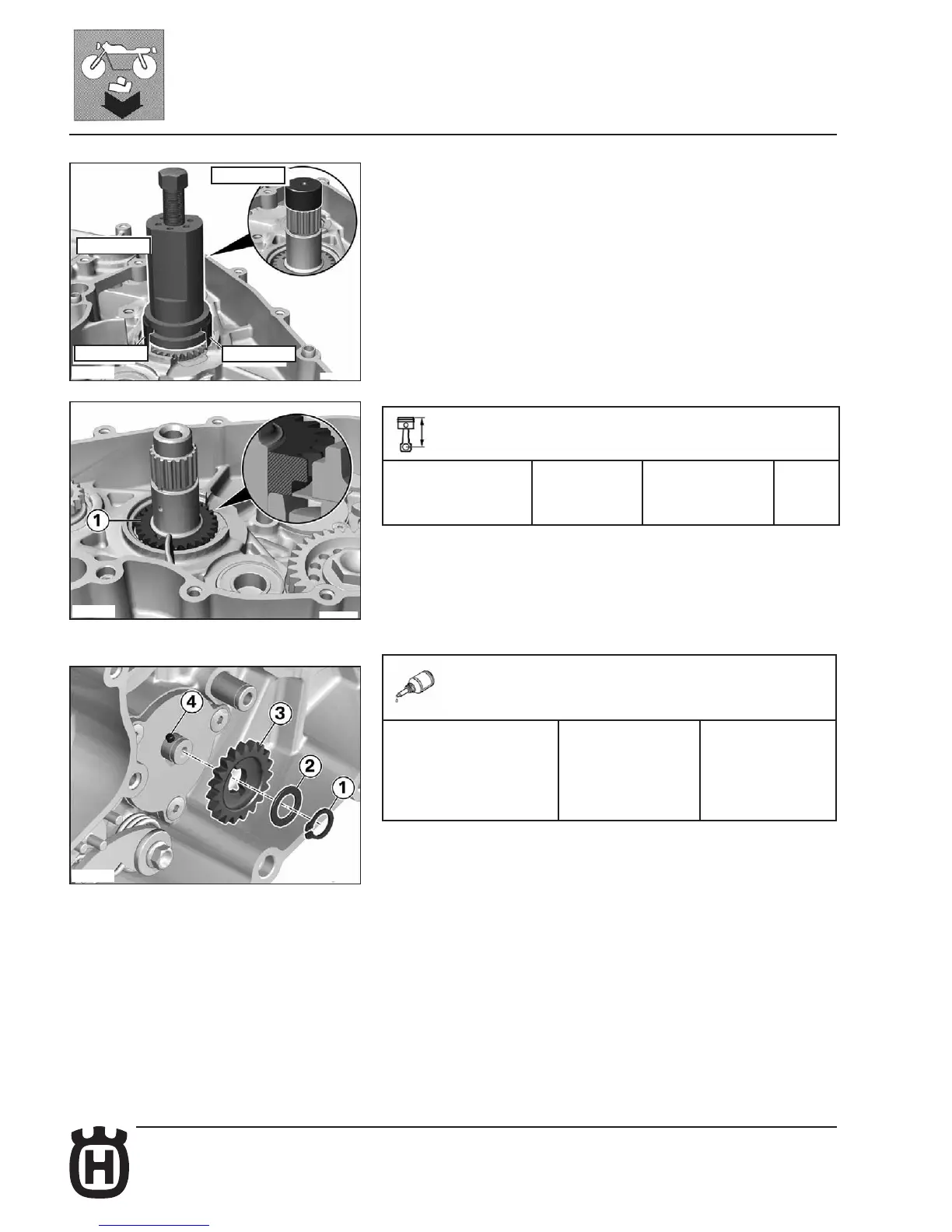

Husqvarna TE511 - Disassembly of Crankshaft Gear Pointing Oil Pump Idler Gear; Assembly of Crankshaft Gear with Oil Pump Idler Gear; Oil Pump Control Gear Assembly

F1.62
H01830
H01887
H01894
8000H5011
8000H5014
8000H5012
8000H5012
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010
Disassembly of crankshaft gear pointing to oil pump idler gear
• Fit presser (N. 8000H5014) onto crankshaft.
Remove gear using puller (N.8000H5011), and jaws (N. 8000H5012)
Assembly of crankshaft gear pointing oil pump idler gear
• Heat gear (1).
Technical specications
Release/connection
temperature
180 °C
• Fit gear (1) with the dowel protruding towards crankcase.
Oil pump control gear assembly
• Lubricate needle roller (4) and gear (3).
Consumables
Molykote D Paste Clear solid lubricant
for metal part
assembling and
settling
• Assemble the following parts:
- Needle roller (4)
- Gear (3)
- Washer (2)
- Stop ring (1)
