Stop lever replacement
Preliminary operations
Clutch cover disassembly
Removing clutch pressure plate
Removing clutch plates
Clutch hub disassembly
Clutch housing disassembly
Coolant pump cover disassembly
Coolant pump rotor disassembly
Engine right crankcase cover disassembly

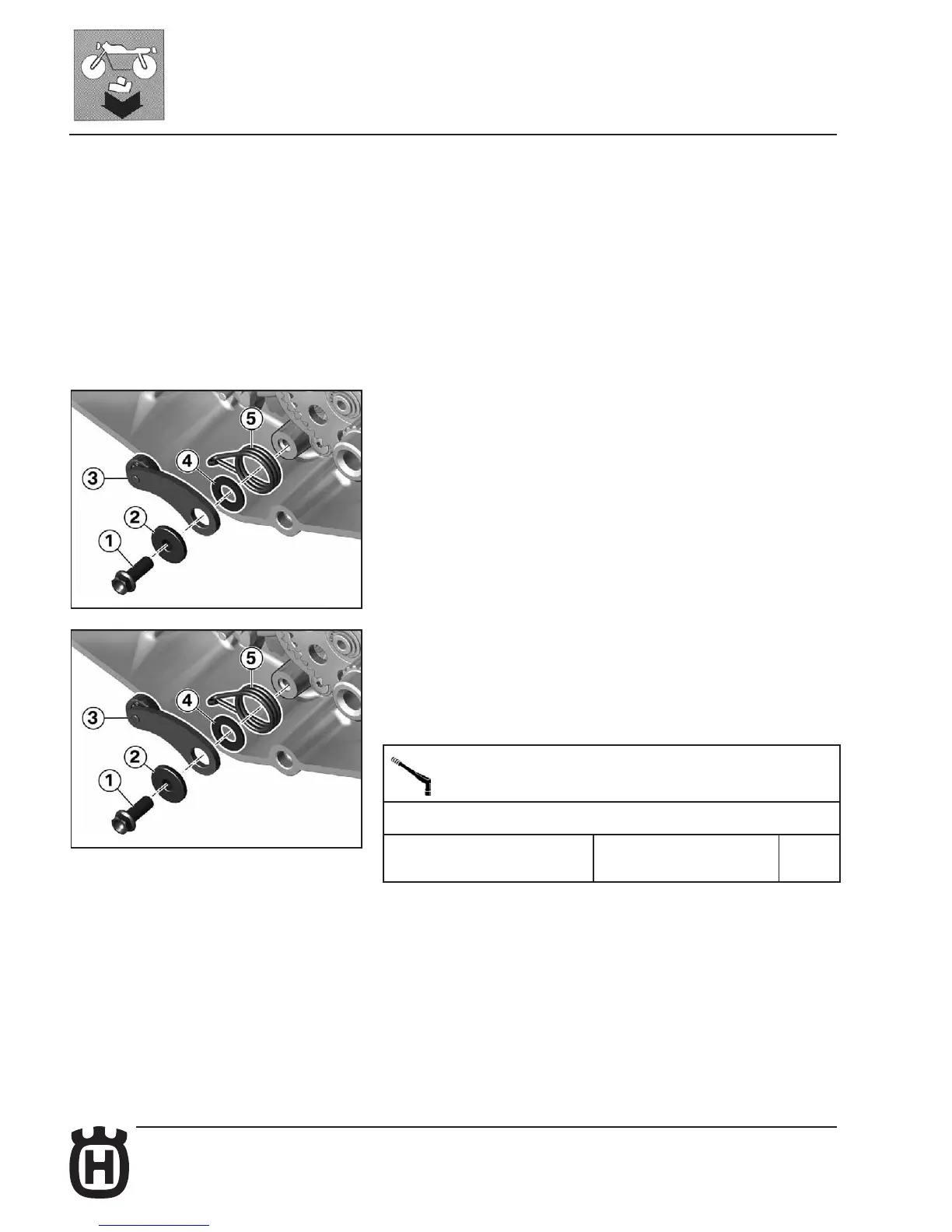

Gear selector lock disassembly
• Disassemble the following parts:
- screw (1)
- Bushing (2)
- Stop element (3)
- Washer (4)
- Spring (5)
Gear selector lock assembly
• Assemble the following parts:
- Spring (5)
- Washer (4)
- Stop element (3)
- Bushing (2)
• Fit new screw (1).
Tightening torque gures
Stop lever on crankcase lower side
M6 x 16 Microincapsulated screw
replacement
11 Nm
