Husqvarna TE511 - Clutch Hose Removal

E.27
2
H02467
3
1
H02468
H02469
6
7
5
4
1
st
edition (08-2010) _Rev. 11-2010
GENERAL PROCEDURES

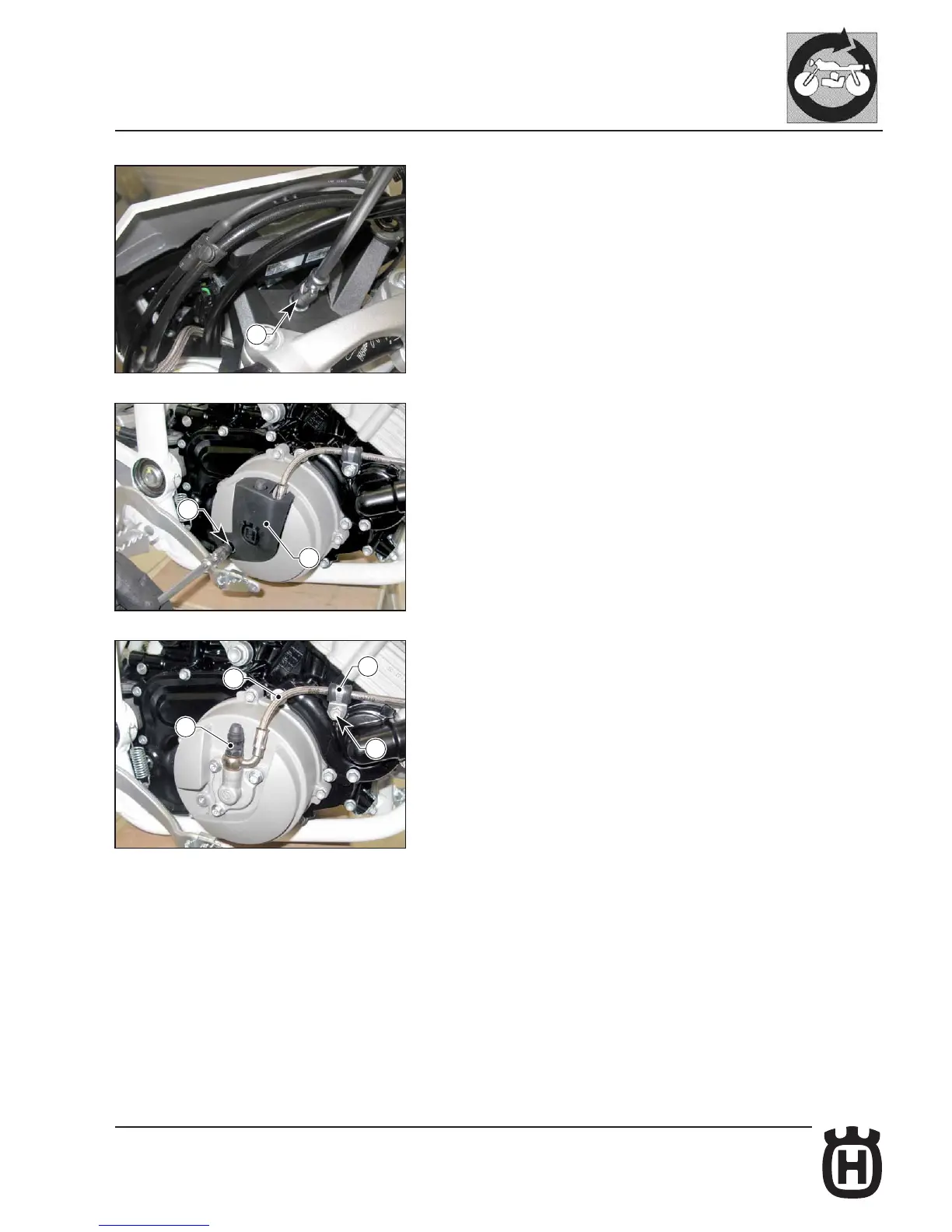

Clutch hose removal
- Loosen screw (1) (with a 8 mm wrench), and move number plate holder or
headlamp fairing.
- Loosen screw (2) (with a 8 mm wrench), and remove the cover (3).
- Loosen screw (4) (with a 8 mm wrench), and disconnect clamp (5) from
engine.
- Loosen clutch hose (7) union (6), and drain all oil out of hose. On reassembly,
bleed the clutch system as described in Section "P".
