Husqvarna TE511 - Pressure Plate Assembly; Clutch Cover Assembly

F1.31
H01861
H01862
H01988
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

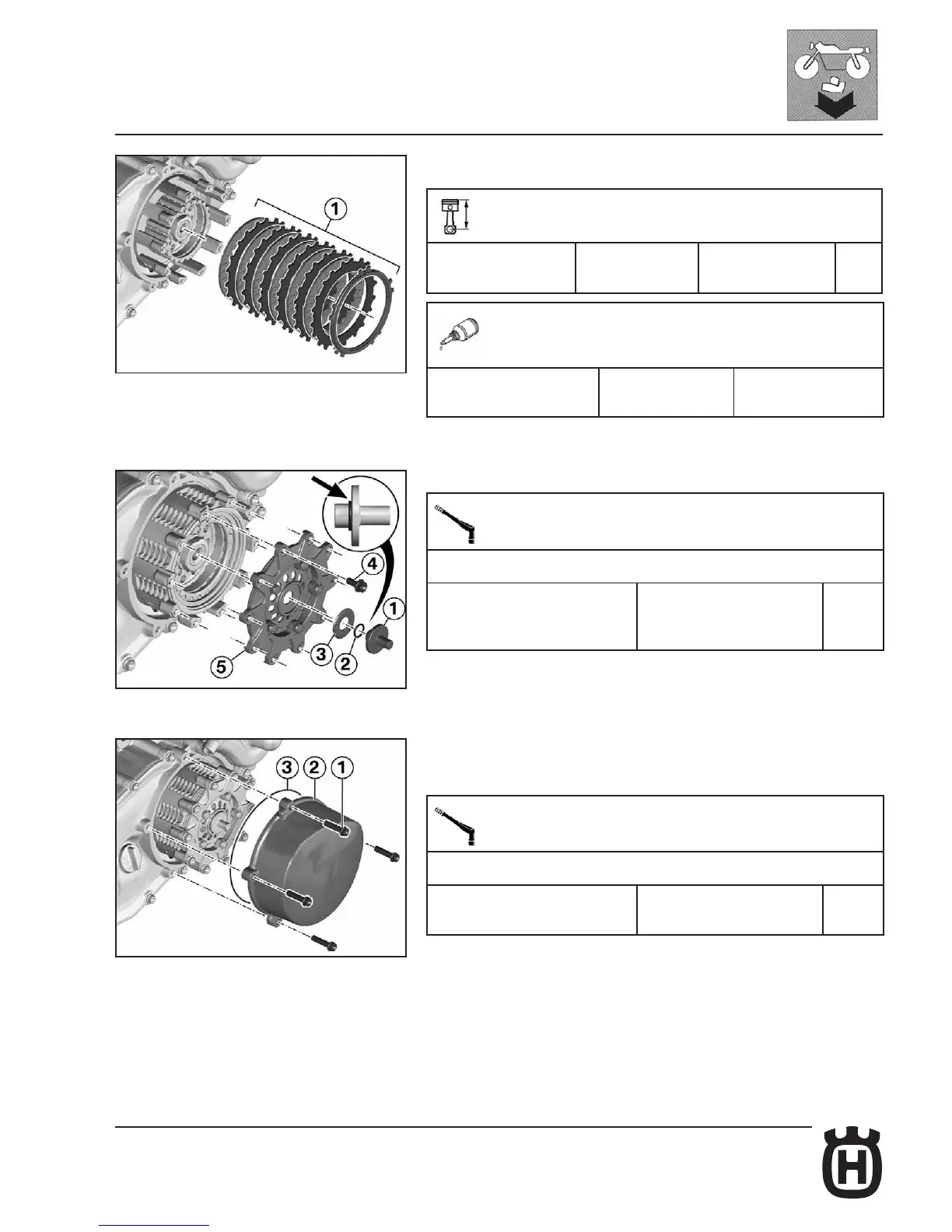

• Make sure that the relief on the last steel washer is pointing outwards.
• Fit greased clutch plate pack (1).
Technical specications
Clutch plates number 6 steel plates
6 lined plates
Consumables
Castrol GPS SAE 10W-40 Engine oil
Pressure plate assembly
• Fit pressure plate (5).
• Fit screws (4) working crossways.
Tightening torque gures
Pressure plate on clutch case
M5 x 12 - 10.9, Microincapsulated
screw replacement
6 Nm
• Fit bearing (3).
• Fit presser (1) with O-Ring (2).
Clutch cover assembly
• Clean gasket groove and bearing surface, check gasket and, if needed, re-
place it.
• Fit clutch cover (2) with gasket (3).
• Fit screws (1).
Tightening torque gures
Clutch cover on engine left crankcase cover
M6 x 25 11 Nm
