Preliminary operations
Spark plug recess ignition coil disassembly
Spark plug disassembly
Removing cylinder head cover
Spark plug recess disassembly
Chain tensioner disassembly
Camshaft removal
Slider disassembly

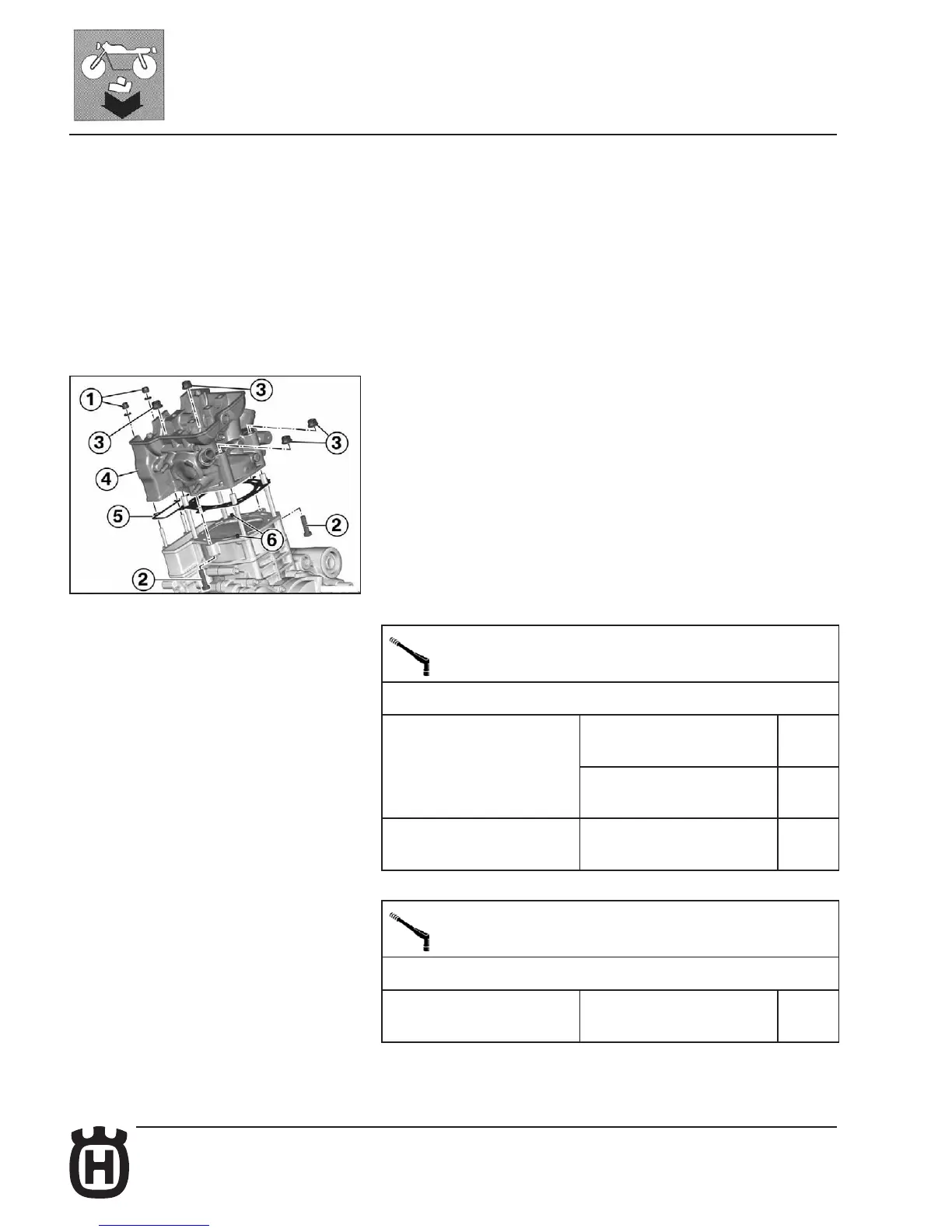

Cylinder head disassembly
Disassemble the following parts:
Nuts (1)
Screws (2)
Nuts (3)
Cylinder head (4)
Cylinder head gasket (5)
Guide sleeves (6)
Cylinder head disassembly and reassembly/head gasket replacement
Cylinder head assembly
• Clean sealing surfaces.
• Apply reference pins (6), and a new head gasket (5).
• Pull timing chain through the recess.
• Fit nuts (3, 1), and cylinder head screws (2) without tightening them.
• Secure nuts (3) working crossways, then secure nuts (1).
Tightening torque gures
Cylinder head with cylinder on engine
Nut, M10 - 10.9 Grease thread Pre-tightening torque, 35 Nm
Final tightening torque, 50 Nm
Nut, M6 - 10.9 Grease thread 11 Nm
• Tighten screws (2).
Tightening torque gures
Cylinder head on cylinder
M8 x 30 Grease thread 15 Nm
