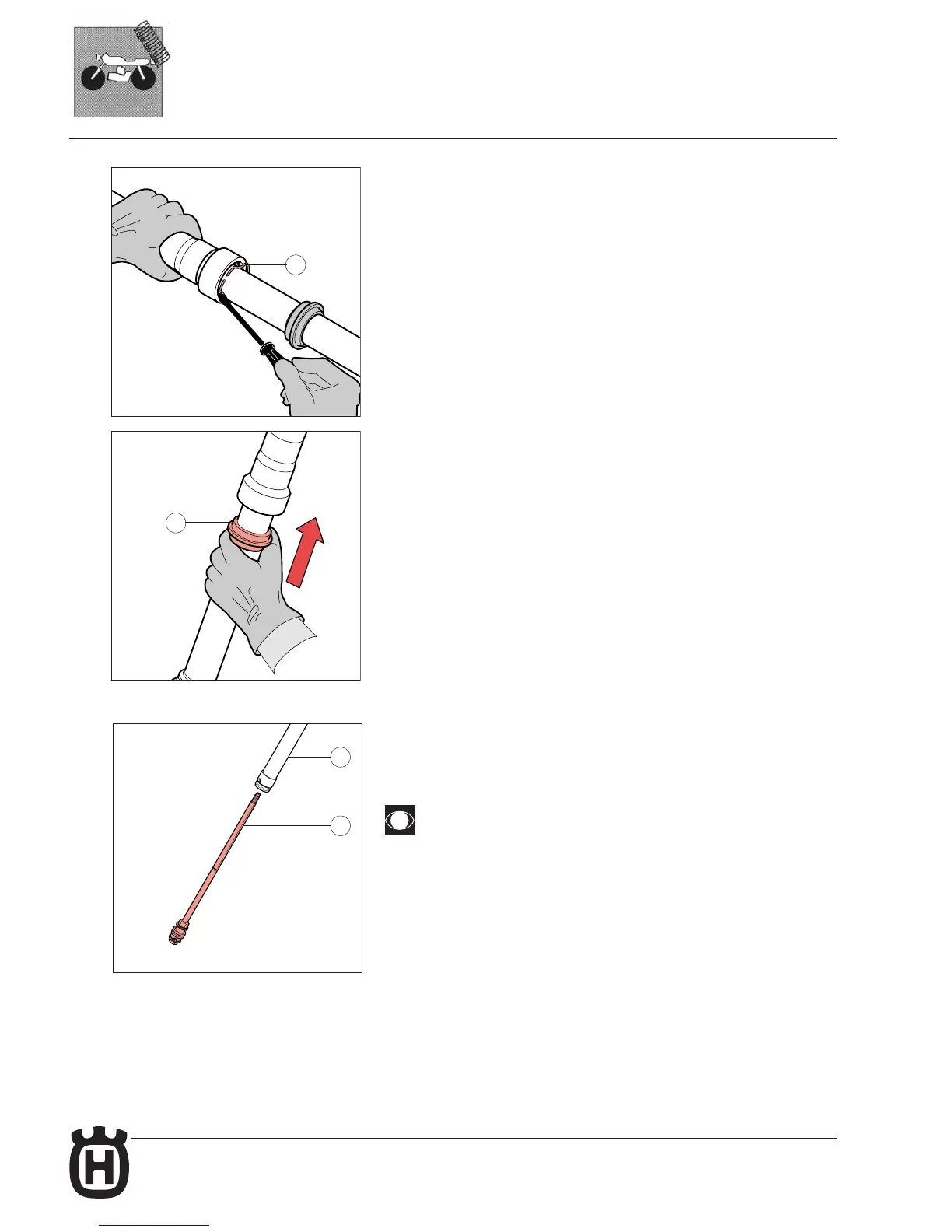

• Mount the stop ring ( 11 ) using a small at- tip screwdriver, checking it ts
perfectly into its groove and being very careful not to scratch the stanchion
tube.
• Re- assemble the dust seal ( 12 ) in its seat, pressing it home with your
hands.
Re- assembling the pumping element unit and the bottom valve
• Insert the pumping element rod ( 32 ) into the body ( 30 ).
In both pumping elements there is a sealing segment; before the as-
sembling make sure that it is not worn or damaged. Replace if necessary.
Take great care and if necessary use a small at- tip screwdriver to help
the pumping element piston into the sleeve. Insert the piston without any
interference.
