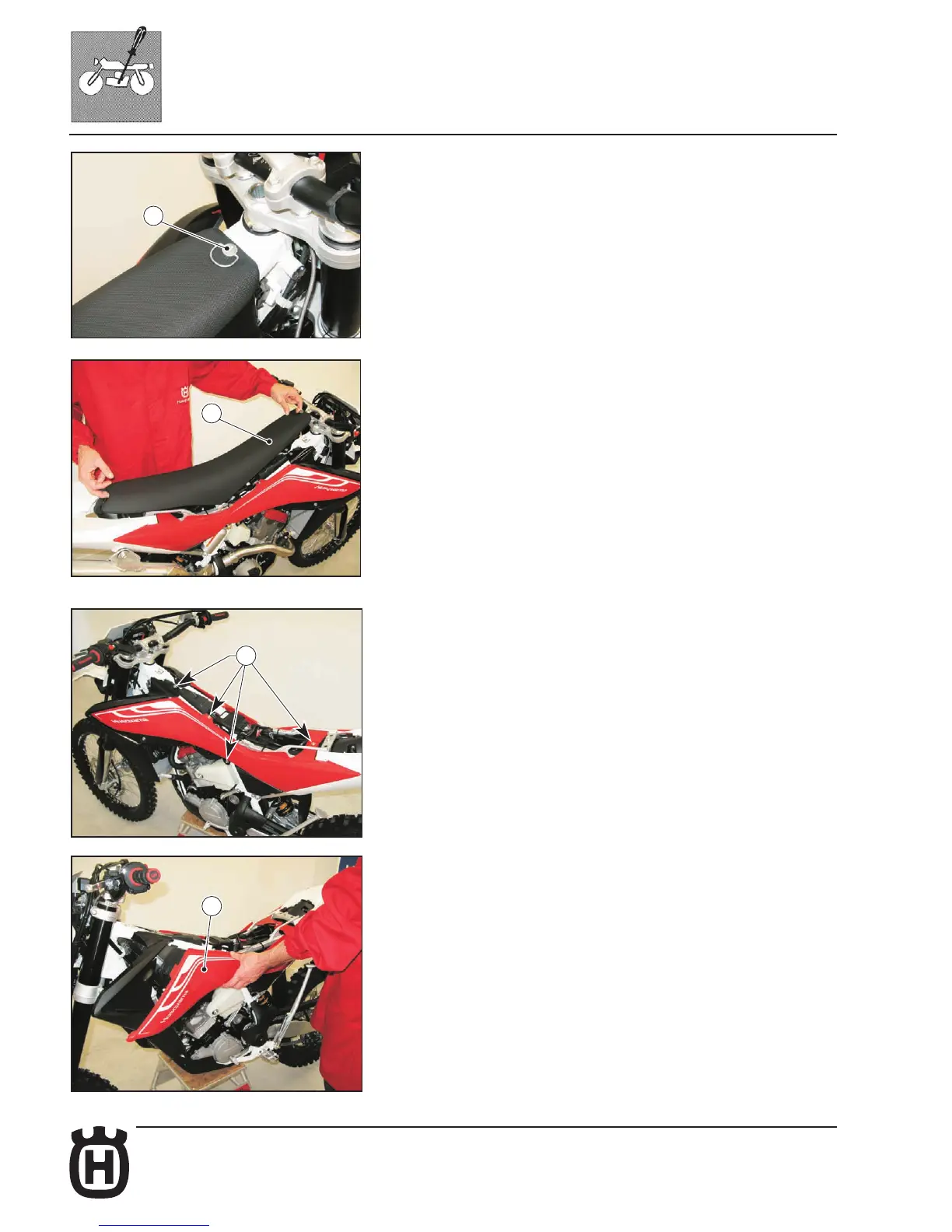

Saddle removal
Turn pin (1) counter clockwise, and remove saddle (2) from central retaining screw.
Side panel removal
- Remove the saddle as described in the relevant paragraph.
- Left-hand side panel:
Loosen the four screws (1) using an 8 mm wrench, and remove the side
panel (2).
