Husqvarna TE511 - Engine Oil Replacement and Mesh Filters-Filter Cartridge Cleaning or Replacement

D.13
H006136
1
H006137
2
H006138
3
H06462
6
6
6
3
4
H006140
6
6
5
6 3
SETTINGS AND ADJUSTMENTS
1
st
edition (08-2010) _Rev. 11-2010

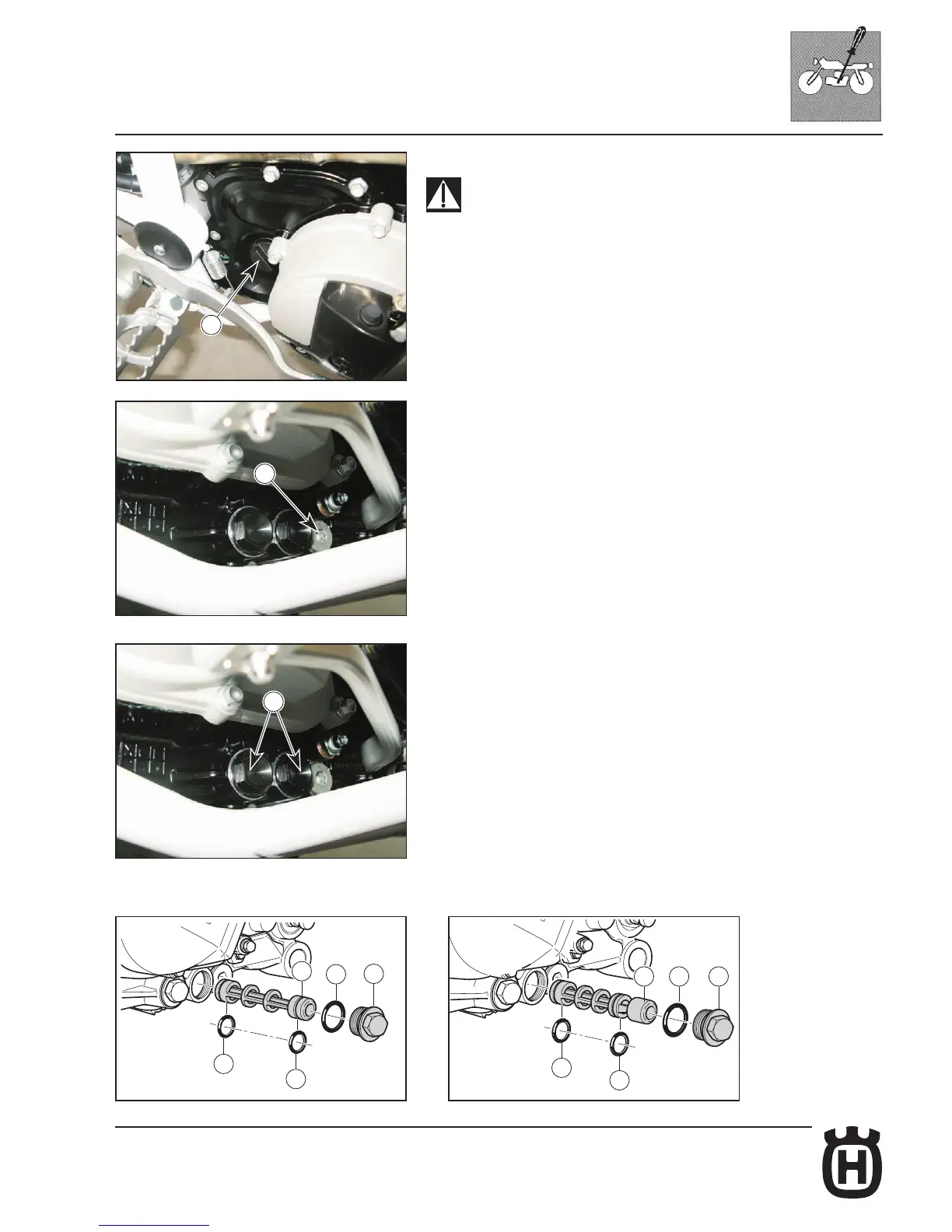

Engine oil replacement and mesh lters-lter cartridge cleaning or replacement
Be careful not to touch hot engine oil.
Drain the oil with WARM ENGINE; proceed as follows:
- Remove the engine guard as described under the relevant paragraph;
- Remove the oil filler cap (1).
- put a drip pan under engine;
- remove oil drainage plug (2);
- evacuate the exhausted oil, and clean magnet on plug (2);
(on reassembly, tighten plug (2) to a torque of 15 Nm / 1.5 Kgm / 11.6 ft/lb)
- loosen the two caps (3), and remove the two mesh filters (4) and (5);
(on reassembly, tighten the two plugs (3) to a torque of 10 Nm / 1.0 Kgm /
7.38 ft/lb)
- check for O-rings (6) conditions. If worn, change them. Then clean filters (4)
and (5) using gasoline;
