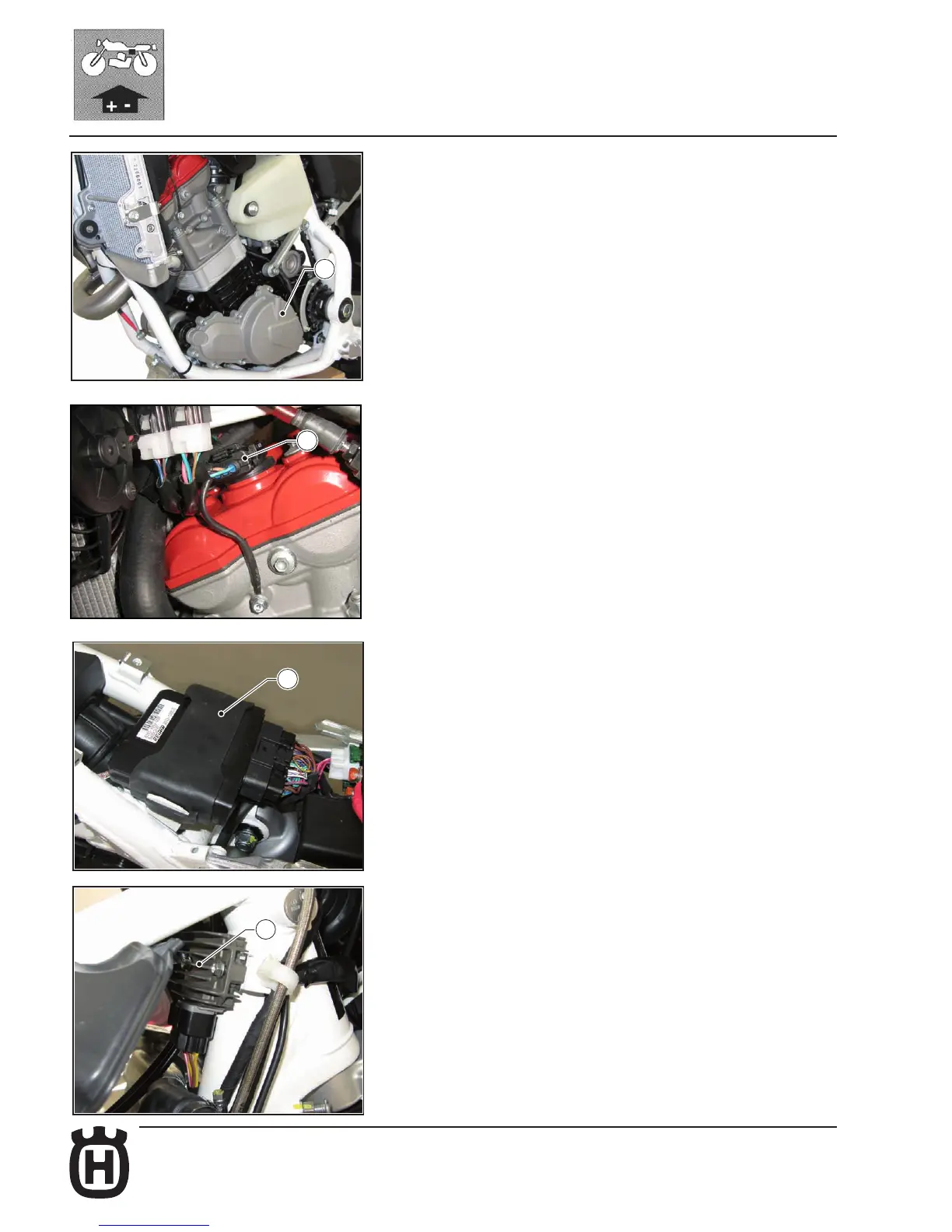

Electrical components location (TC)
The ignition system includes the following elements:
- Generator (1), on the inner side of L.H. crankcase half cover;
- Electronic ignition coil (2) with integrated spark plug cap positioned on
cylinder head;
- Spark plug on cylinder head;
- Electronic control unit (3) under the saddle;
- Voltage regulator (4) located at the back of the steering tube.
