Husqvarna TE511 - Coolant Pump Disassembly and Assembly; Coolant Pump Cover Disassembly; Coolant Pump Rotor Disassembly

F1.37
H01941
H01740
H01741
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

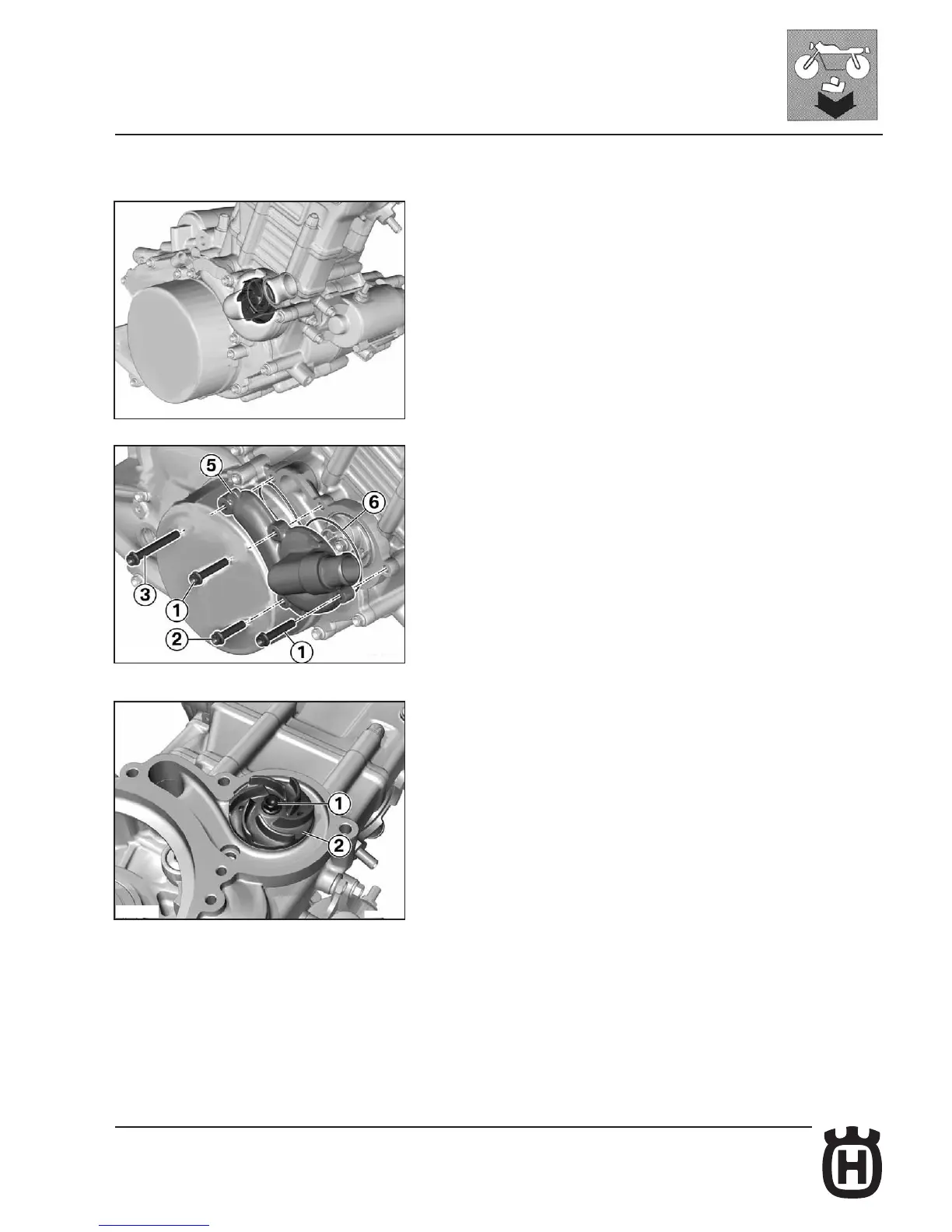

Coolant pump disassembly and assembly
Coolant pump cover disassembly
• Disassemble the following parts:
- Screws (1, 2, 3)
- Cover (5)
- Seal (6)
Coolant pump rotor disassembly
• Disassemble the following parts:
- screw (1)
- Rotor (2)
