Husqvarna TE511 - Chain Tensioner Disassembly and Reassembly or Replacement; Chain Tensioner Disassembly; Chain Tensioner Assembly

F1.43
H01933
H01871
H01871
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

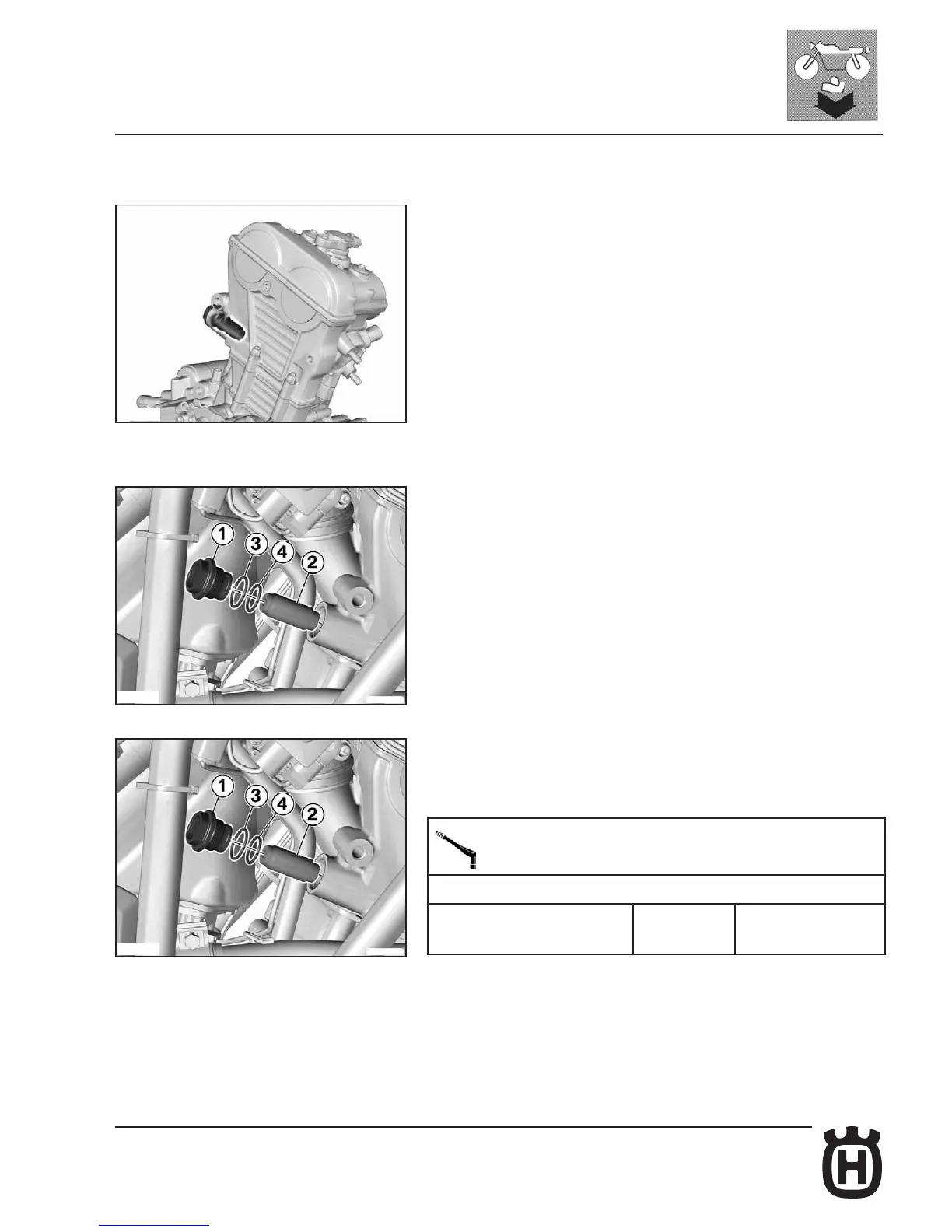

Chain tensioner disassembly
• Disassemble the following parts:
- screw (1)
- Chain tensioner (2)
- O-Rings (3, 4)
Chain tensioner assembly
• Assemble the following parts:
- O-Rings (4, 3)
- Chain tensioner (2)
• Fit screw (1).
Tightening torque gures
Chain tensioner screw cap
M24 x 1.5, with O-Ring Grease
thread
20 Nm
Chain tensioner disassembly and reassembly or replacement
