Husqvarna TE511 - Replacing Oil Pump Gears (Crankcase Cover Removed); Oil Pump Idler Gear Disassembly; Oil Pump Control Gear Disassembly

F1.61
H01937
H01724
H01887
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010
Preliminary operations
Idler gear disassembly
Clutch housing axial bearing disassembly
Clutch thrust washer disassembly

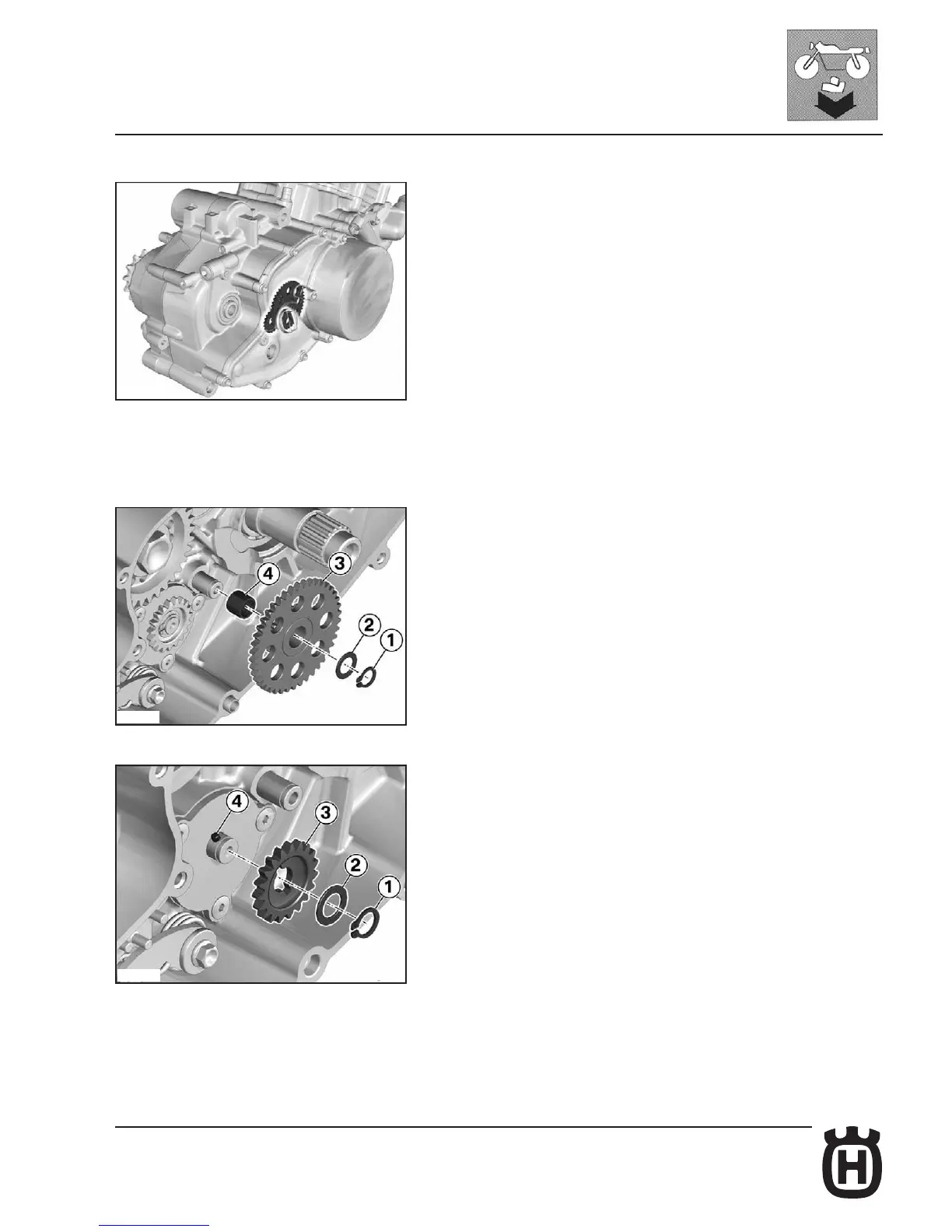

Oil pump idler gear disassembly
• Disassemble the following parts:
- Stop ring (1)
- Washer (2)
- Gear (3)
- Bearing (4)
Oil pump control gear disassembly
• Disassemble the following parts:
- Stop ring (1)
- Washer (2)
- Gear (3)
- Needle roller (4)
Replacing oil pump gears (crankcase cover removed)
