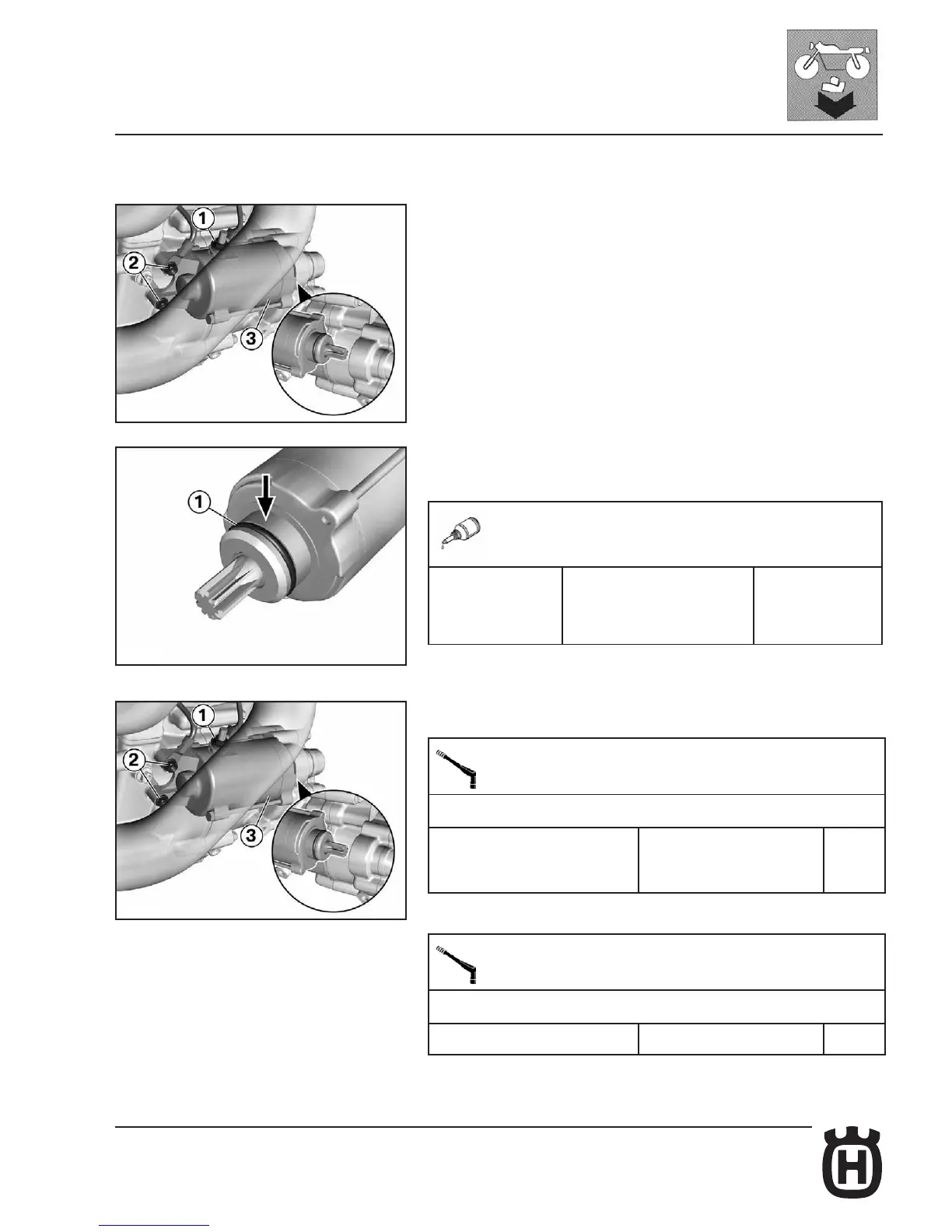

Disassembling/assembling starter motor
Removing starter motor
• Disconnect positive cable (1).
• Remove screws (2).
• Remove starter motor (3).
Starter motor assembly
• Check sealing ring (1) for damages. Replace it, if necessary.
• Lubricate contact surface (arrow).
Consumables
Molykote D Paste Clear solid lubricant for metal
part assembling and settling
• Fit starter motor, taking special care to sealing ring (3).
• Fit screws (2) with the ground cable pointing up.
Tightening torque gures
Starter motor onto crankcase
M6 x 25
Grease thread
11 Nm
• Fit positive cable (1).
Tightening torque gures
Wiring harness on starter motor
M6 8 Nm
