F1.35
H01742
H01869
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

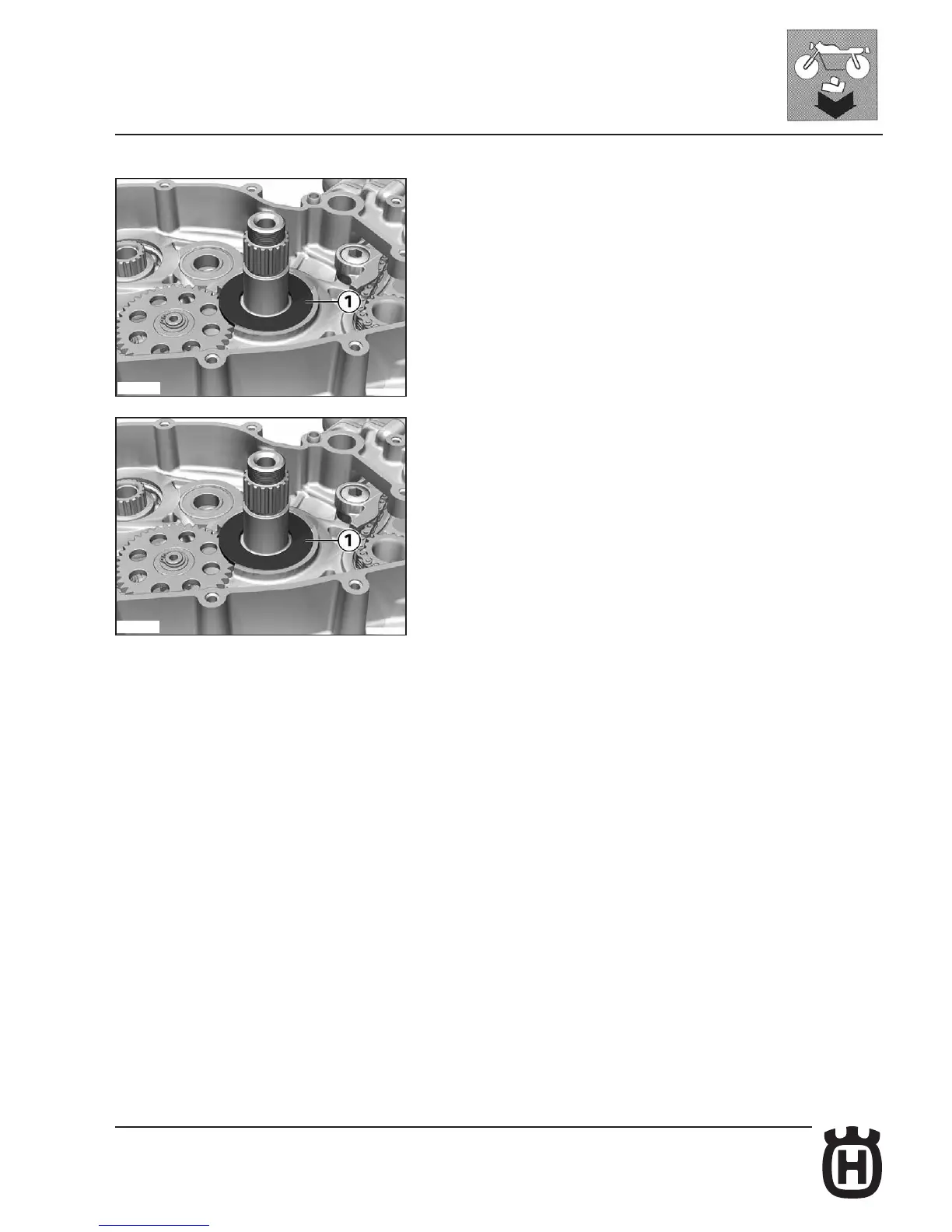

Clutch thrust washer disassembly
• Remove washer (1).
Clutch thrust washer
Clutch thrust washer assembly
• Fit washer (1).
