ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

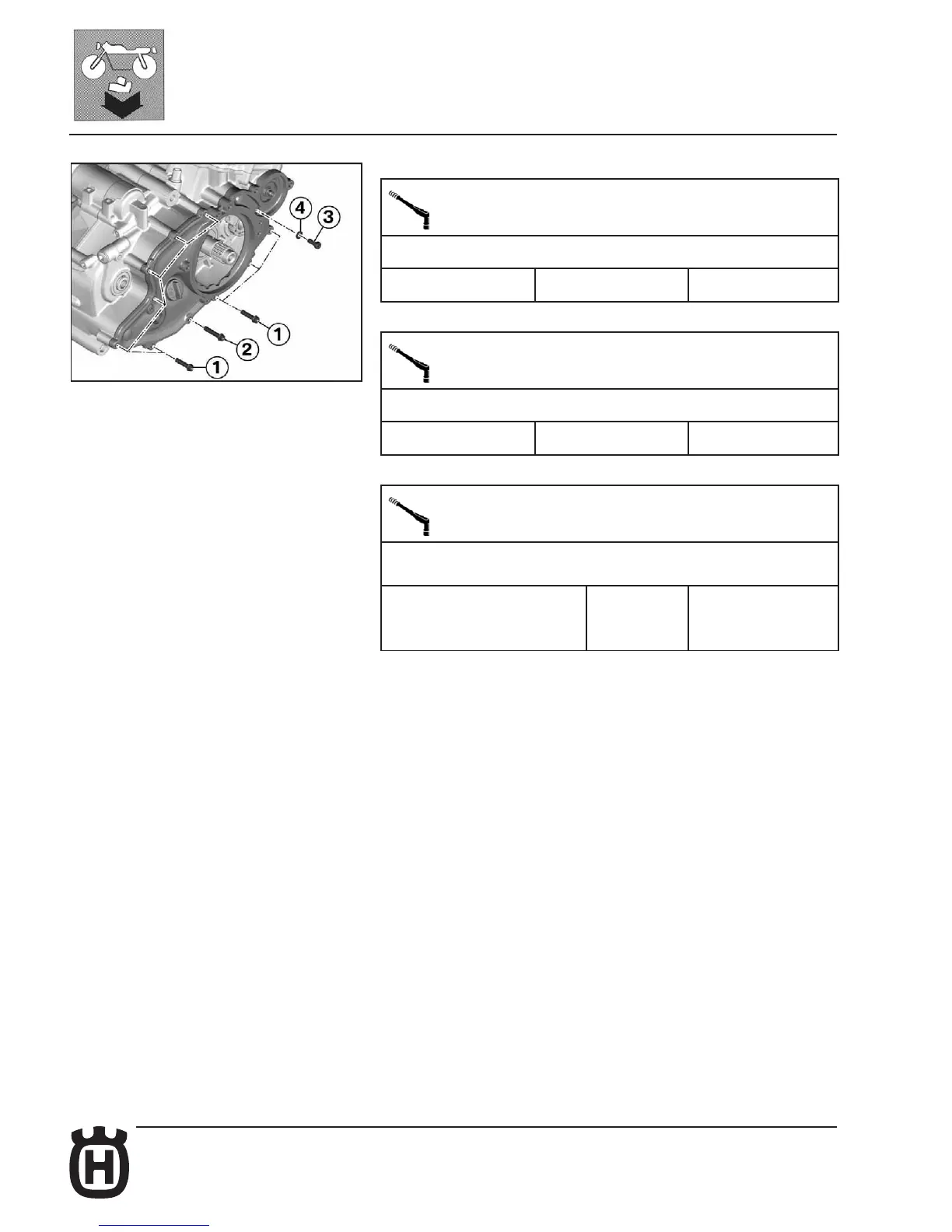

• Fit screw (2).
Tightening torque gures
Engine and crankcase fairing, screw connections
M6 x 30 11 Nm
• Fit screws (1) working crossways.
Tightening torque gures
Engine and crankcase fairing, screw connections
M6 x 25 11 Nm
• Fit a new screw (3) with washer (4), but do not tighten them.
Tightening torque gures
Cooling channel gasket inside right engine fairing on
crankcase
M6 x 16, Replace screw with
microincapsulated sealing
washer
11 Nm
