Husqvarna TE511 - Gearbox Output Shaft Right Bearing Disassembly; Gearbox Output Shaft Left Bearing Disassembly

F1.91
H01902
H01903
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

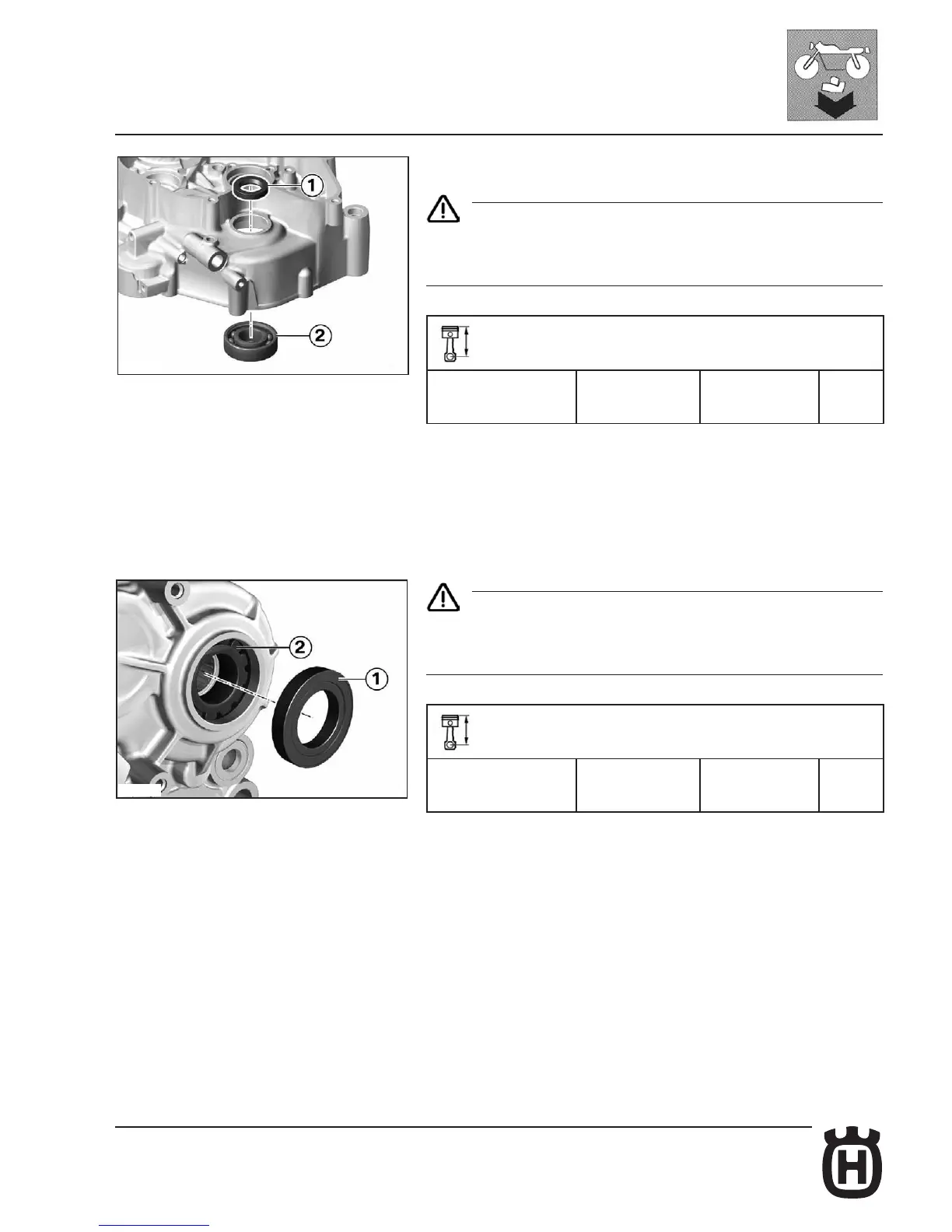

Gearbox output shaft right bearing disassembly
• Remove oil seal (1).
Caution
Temperature differences as well as casing overheating may
lead to structure changes and to cracks due to internal stresses.
Evenly heat casing, making sure not to exceed the recommended value.
• Heat crankcase.
Technical specications
Release/connection
temperature
180 °C
• Remove bearing (2).
Gearbox output shaft left bearing disassembly
• Remove oil seal (1).
Caution
Temperature differences as well as casing overheating may
lead to structure changes and to cracks due to internal stresses.
Evenly heat casing, making sure not to exceed the recommended value.
• Heat crankcase.
Technical specications
Release/connection
temperature
180 °C
• Remove bearing (2).
