Husqvarna TE511 - Starter Motor Drive Gear Fitting; Gear Assembly with Starter Motor Protected against Overload

F1.72
H01726
H01725
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

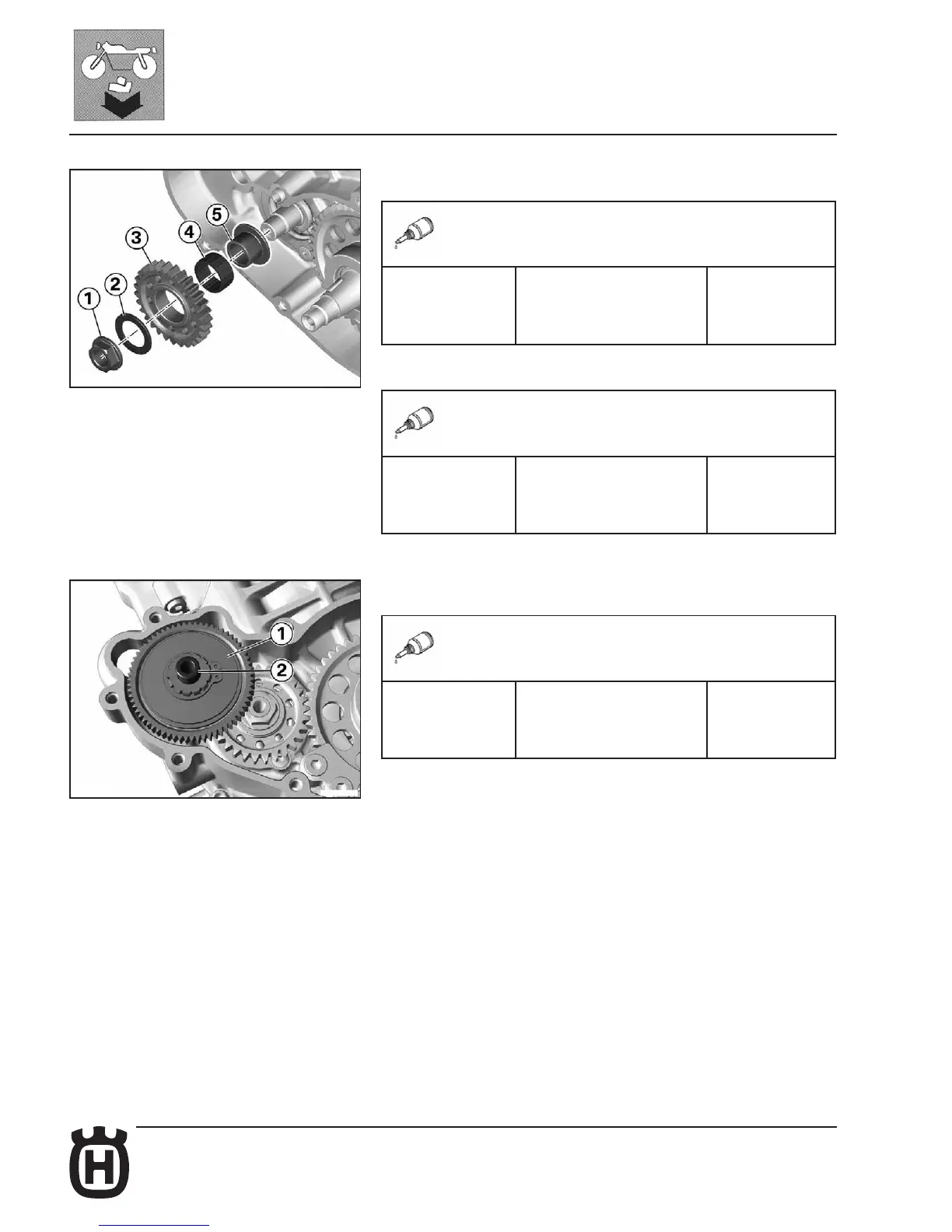

Starter motor idle gear tting
• Lubricate bushing (5), and needle roller bearing (4), then assemble them.
Consumables
Molykote D Paste Clear solid lubricant for metal
part assembling and settling
• Lubricate gear (3), and assemble it with the dowel pointing towards counter-
shaft.
Consumables
Molykote D Paste Clear solid lubricant for metal
part assembling and settling
• Fit washer (2) with nut (1), but do not tighten them.
Gear assembly with starter motor protected against overload
• Lubricate shaft (2) with gear (1), and assemble them.
Consumables
Molykote D Paste Clear solid lubricant for metal
part assembling and settling
