Husqvarna TE511 - Chain Slider; Chain Tensioning Slider Disassembly; Slider Disassembly; Chain Sliding and Tensioning Slider Check

F1.52
H01749
H01750
H01751
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

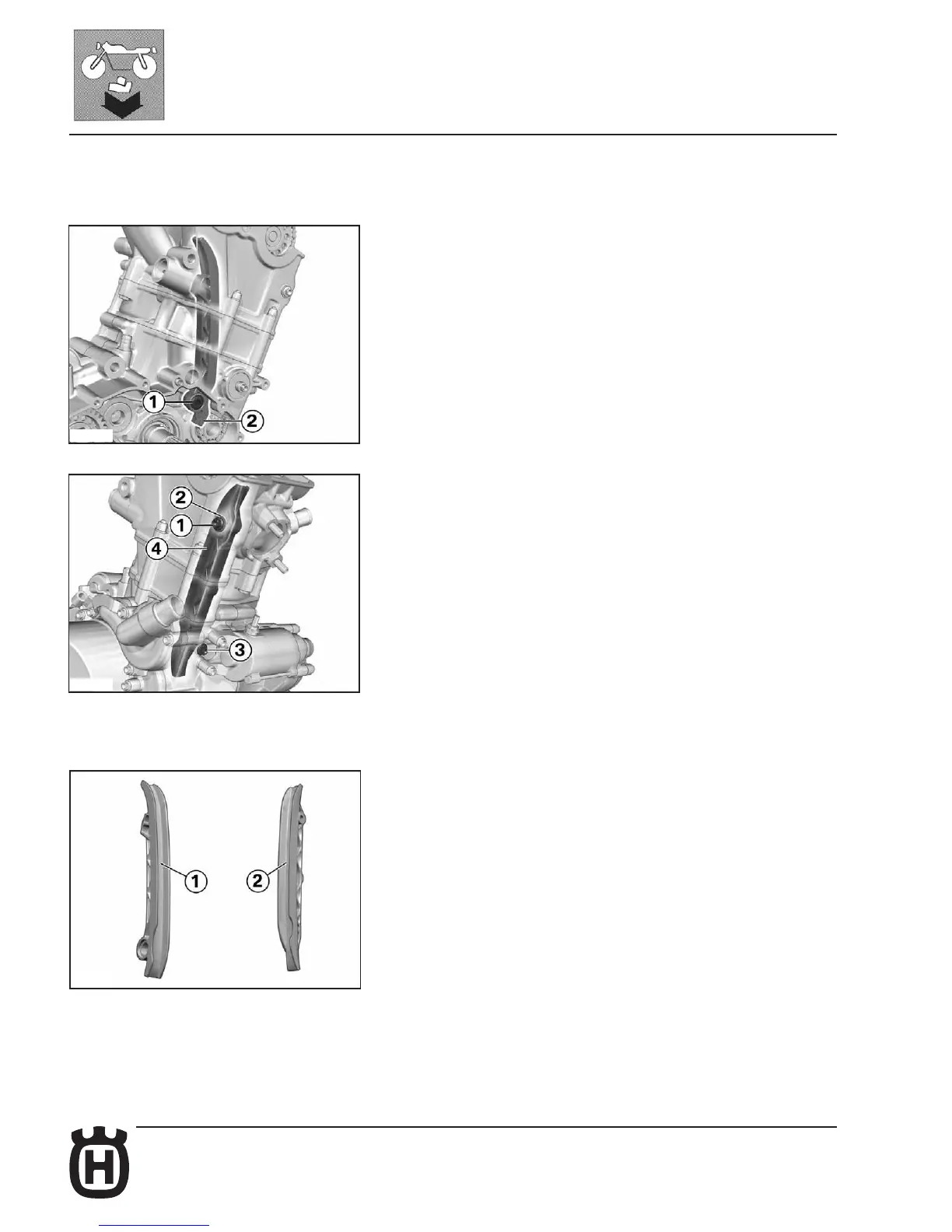

Chain tensioning slider disassembly
• Remove screw (1).
• Remove chain tensioning slider (2).
Slider disassembly
• Disassemble the following parts:
- screw (1)
- Washer (2)
- Screw with O-Ring (3)
- Slider (4)
Chain slider
Chain sliding and tensioning sliders check
Check
• Check chain tensioning (1) and sliding (2) sliders sliding surfaces.
Result: Sliding surfaces are damaged or worn.
Action:
• Change sliders.
