Husqvarna TE511 - Crankcase Left Cover Replacement; Stator Disassembly; Stator Assembly

F1.22
H01919
H01920
H01921
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010
Preliminary operations
Engine oil drainage
Engine left crankcase cover disassembly

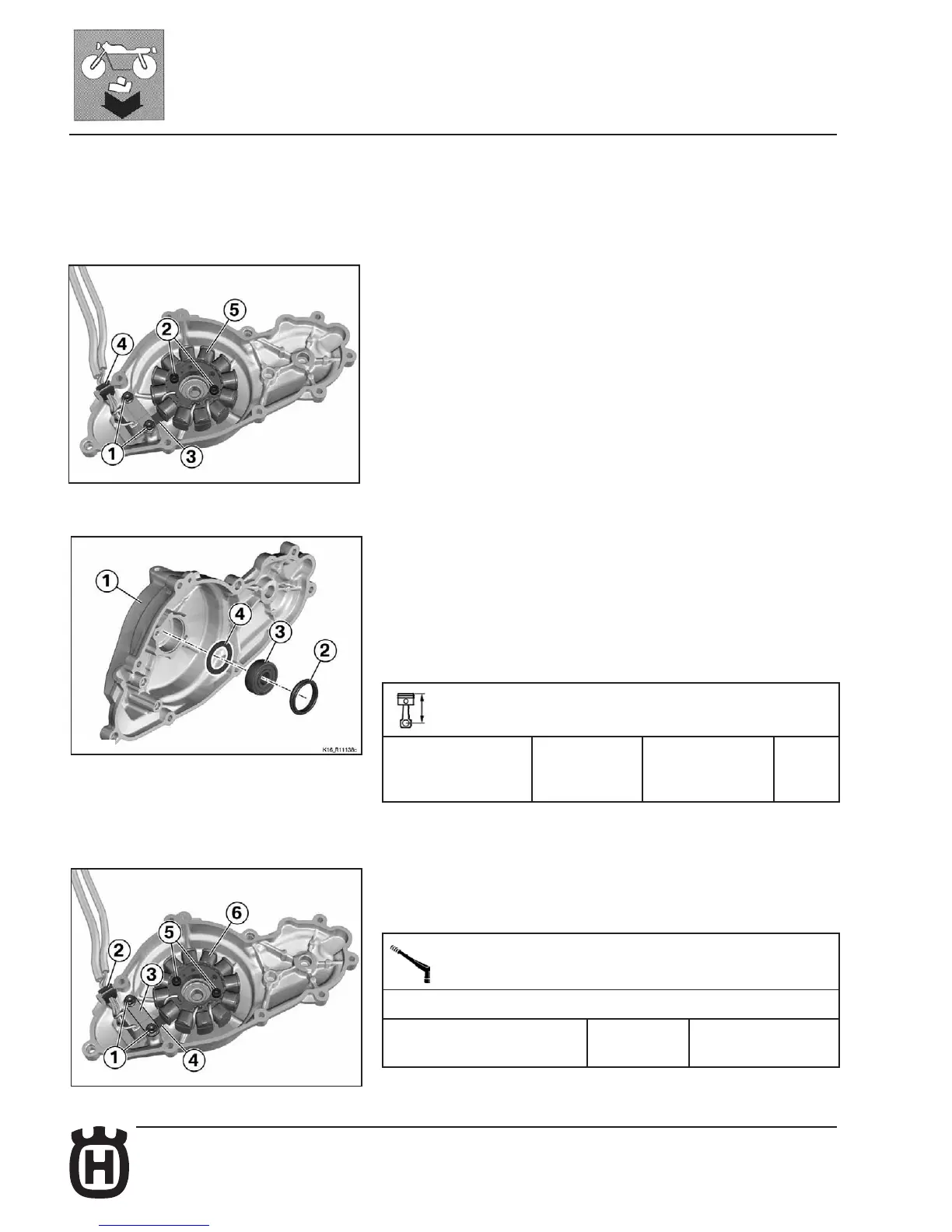

Stator disassembly
• Disassemble the following parts:
- Screws (1) and (2)
- Cable retaining plate (3)
- Rubber sheath (4)
- Stator (5)
• Arrange the following new parts:
- Crankcase cover (1)
- Centring ring (2)
- Bearing (3)
- Washer (4)
• Lay crankcase cover (1) onto a suitable base, and protect it against scratch-
es.
• Insert washer (4) inside crankcase cover (1).
• Heat crankcase cover (1) at the bearing (3).
Technical specications
Release/connection
temperature
80 °C
• Fit bearing (3) and centring ring (2) all the way down using a suitable tool.
Crankcase left cover replacement
Stator assembly
• Clean screw (1) and (5) threaded holes.
• Position stator (6).
• Tighten screws (5).
Tightening torque gures
Stator onto engine left crankcase cover
M5 x 20, Microincapsulated
screw replacement
6 Nm
