Husqvarna TE511 - Rocker Arm Shaft Assembly

F1.49
H01913
H01916
H01915
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

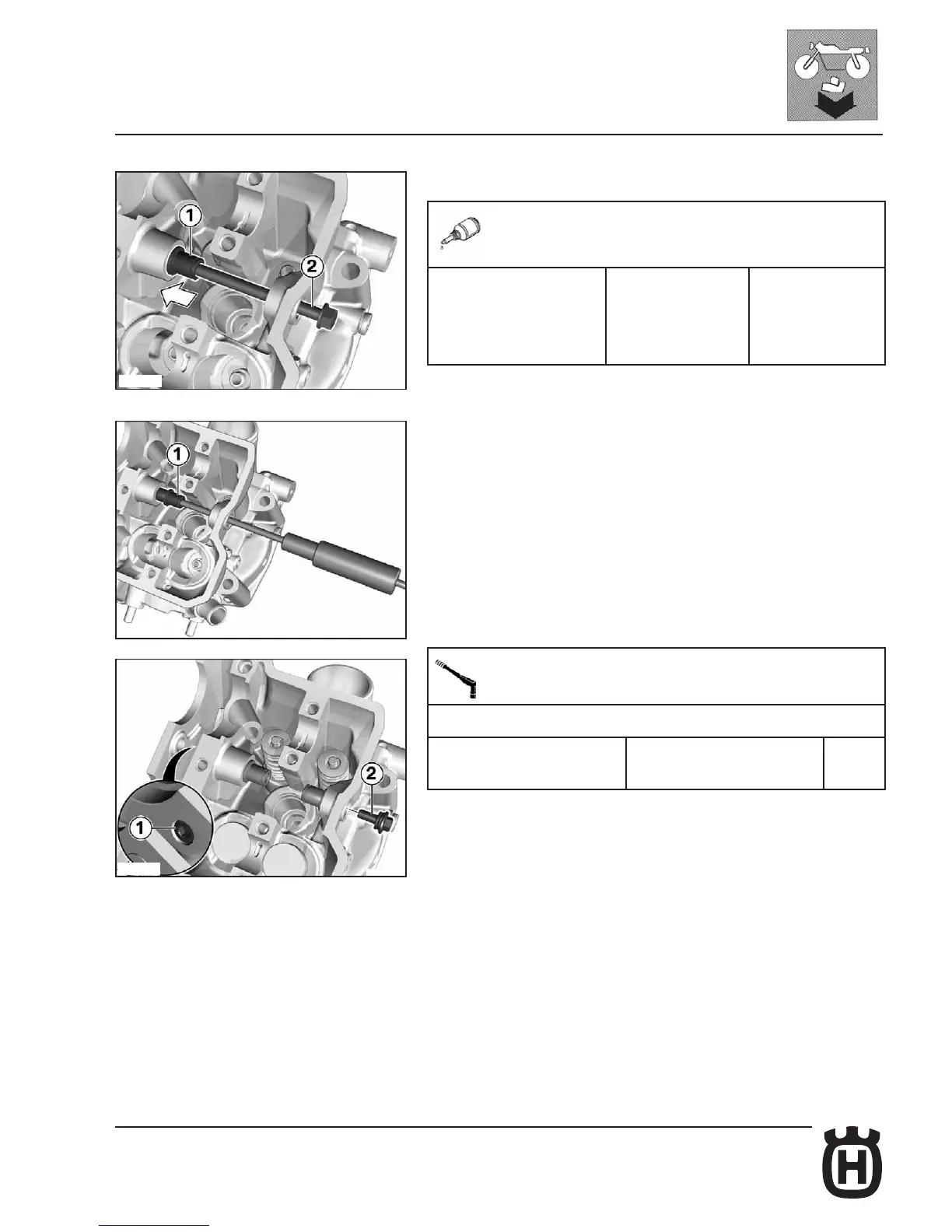

Rocker arms shaft assembly
• Lubricate rocker arm shafts.
Consumables
Molykote D Paste Clear solid lubricant
for metal part
assembling and
settling
• Assemble right rocker arm shaft (1) with a suitable tool (2).
• Assemble left rocker arm shaft (1) with a suitable tool.
• Fit screw (1), and screw with the O-Ring (2).
Tightening torque gures
Rocker arm shafts onto cylinder head
M6, Microincapsulated screw
replacement
11 Nm
