Husqvarna TE511 - Starter Drive Gear Replacement; Gear Disassembly with Starter Motor Protected against Overload; Starter Motor Drive Gear Disassembly

F1.70
H01725
H01726
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010
Starter idle gear replacement
Preliminary operations
Engine oil drainage
Gear lever disassembly
Engine left crankcase cover disassembly
Securing crankshaft at TDC
Starter motor idle gear disengagement
Flywheel disassembly

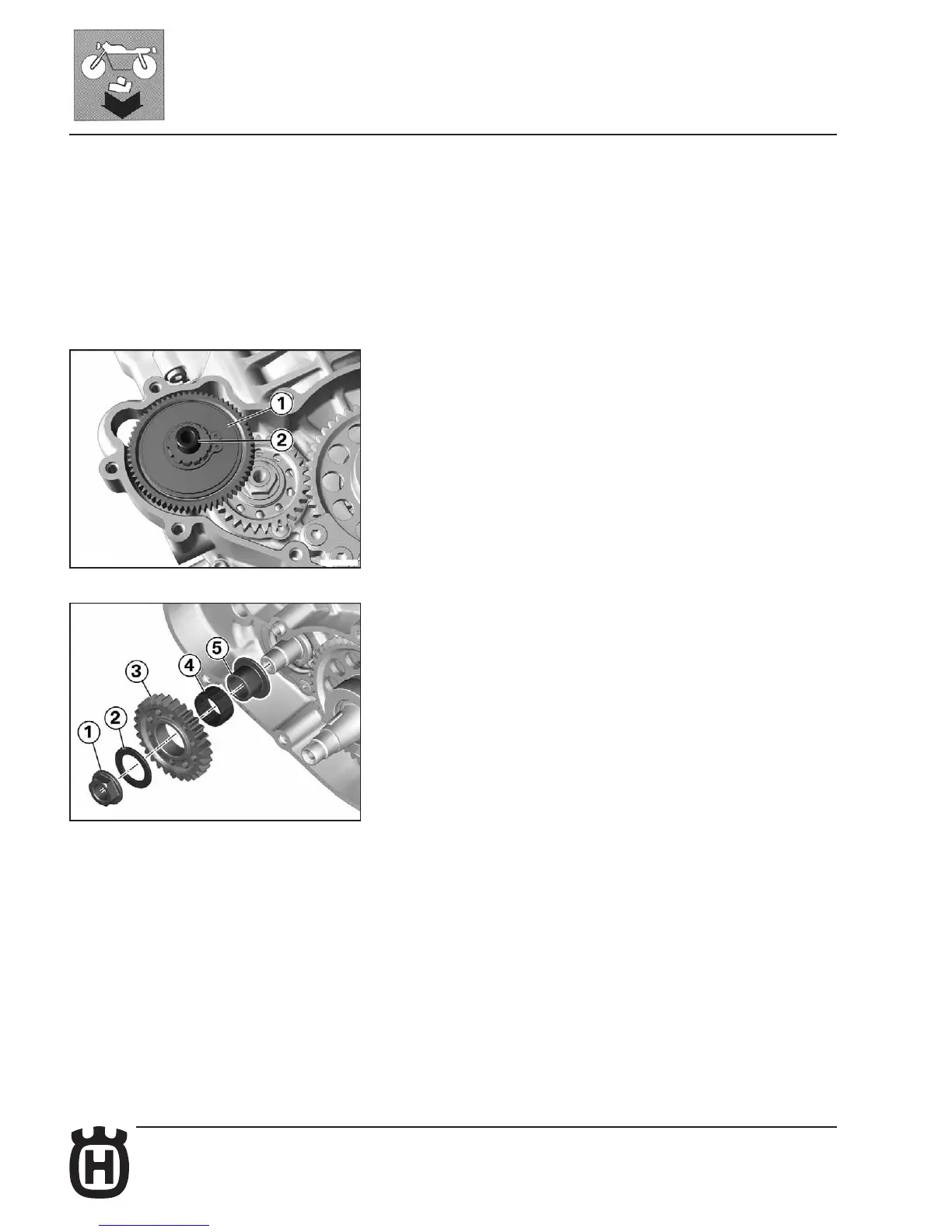

Gear disassembly with starter motor protected against overload
• Remove gear (1) with shaft (2).
Starter motor idle gear disassembly
• Disassemble the following parts:
- Nut (1)
- Washer (2)
- Gear (3)
- Needle roller bearing (4)
- Bushing (5)
