Husqvarna TE511 - Electrical Components Location (te - SMR)

M.13
H06280
15
H06284
1
H06442
2
3
H06273
ELECTRICAL SYSTEM
1
st
edition (08-2010)_Rev. 11-2010
- Condenser (15) positioned on engine rear side.

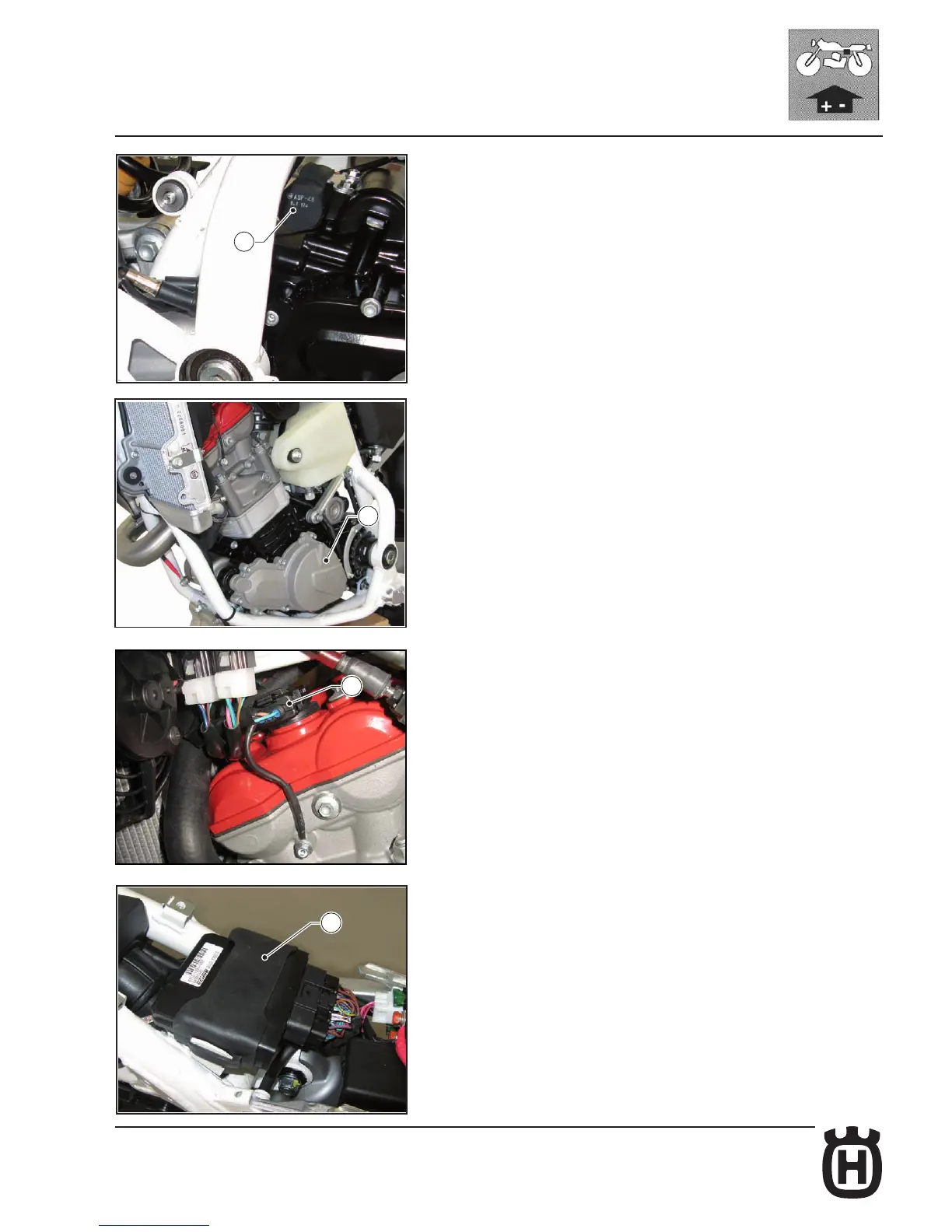

Electrical components location (TE - SMR)
The ignition system includes the following elements:
- Generator (1) on the inner side of L.H. crankcase half cover;
- Electronic ignition coil (2) with integrated spark plug cap positioned on
cylinder head;
- Spark plug on cylinder head;
- Electronic control unit (3) under the saddle;
