Husqvarna TE511 - Replacing Gearbox Control Shaft Radial Sealing Ring; Removing Oil Seal from Gearbox Shaft; Fitting Gearbox Shaft Oil Seal

F1.67
H01997
H01997
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010
Replace gearbox control shaft radial sealing ring
Preliminary operations
Gear lever disassembly

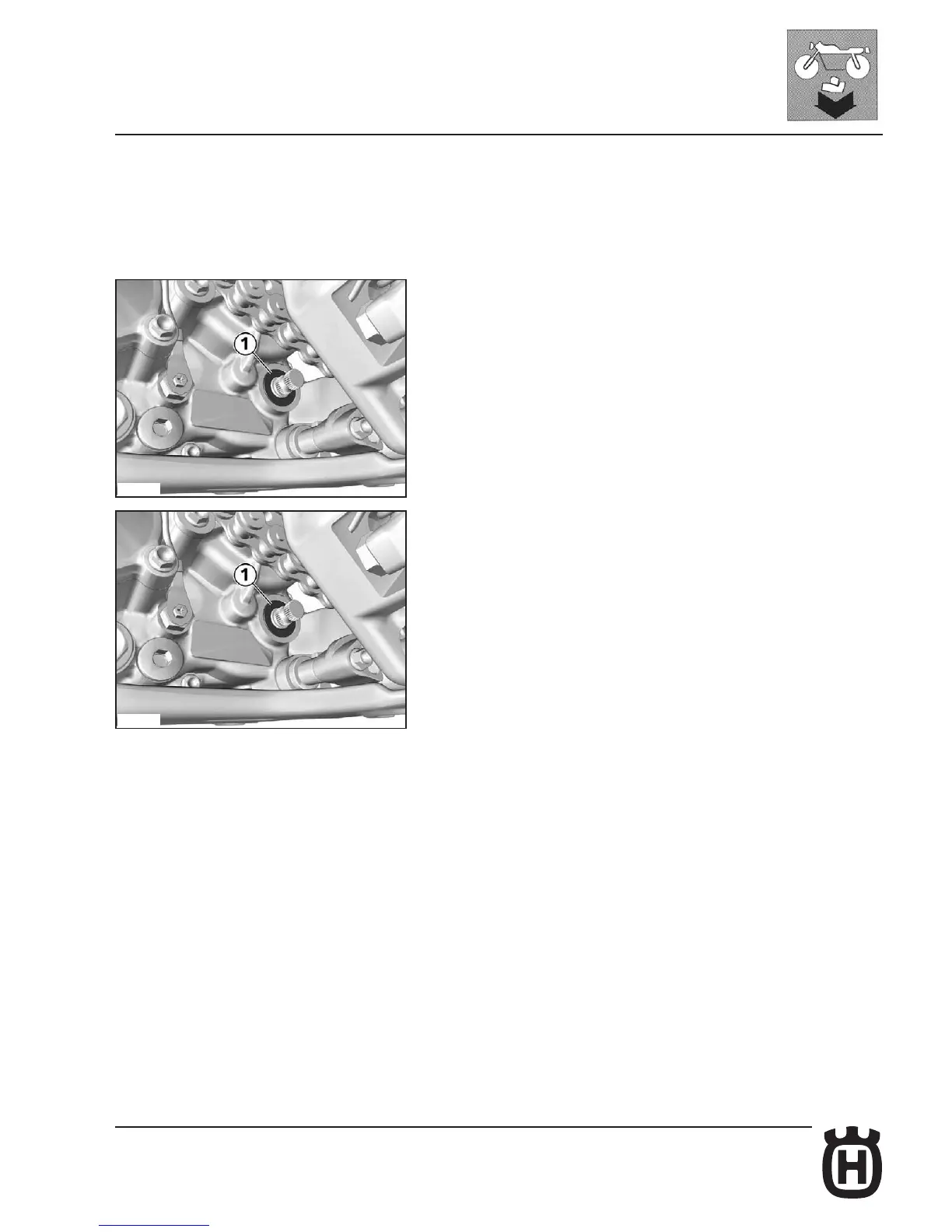

Removing oil seal from gearbox shaft
• Using a suitable tool, remove oil seal (1) with the utmost care.
Fitting gearbox shaft oil seal
• Fit oil seal (1) using a suitable tool.
