Husqvarna TE511 - Gearbox Output Shaft Left Bearing Assembly; Gearbox Output Shaft Right Bearing Assembly; Gearbox Shaft Right Bearing Assembly

F1.94
H01904
H01903
H01902
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

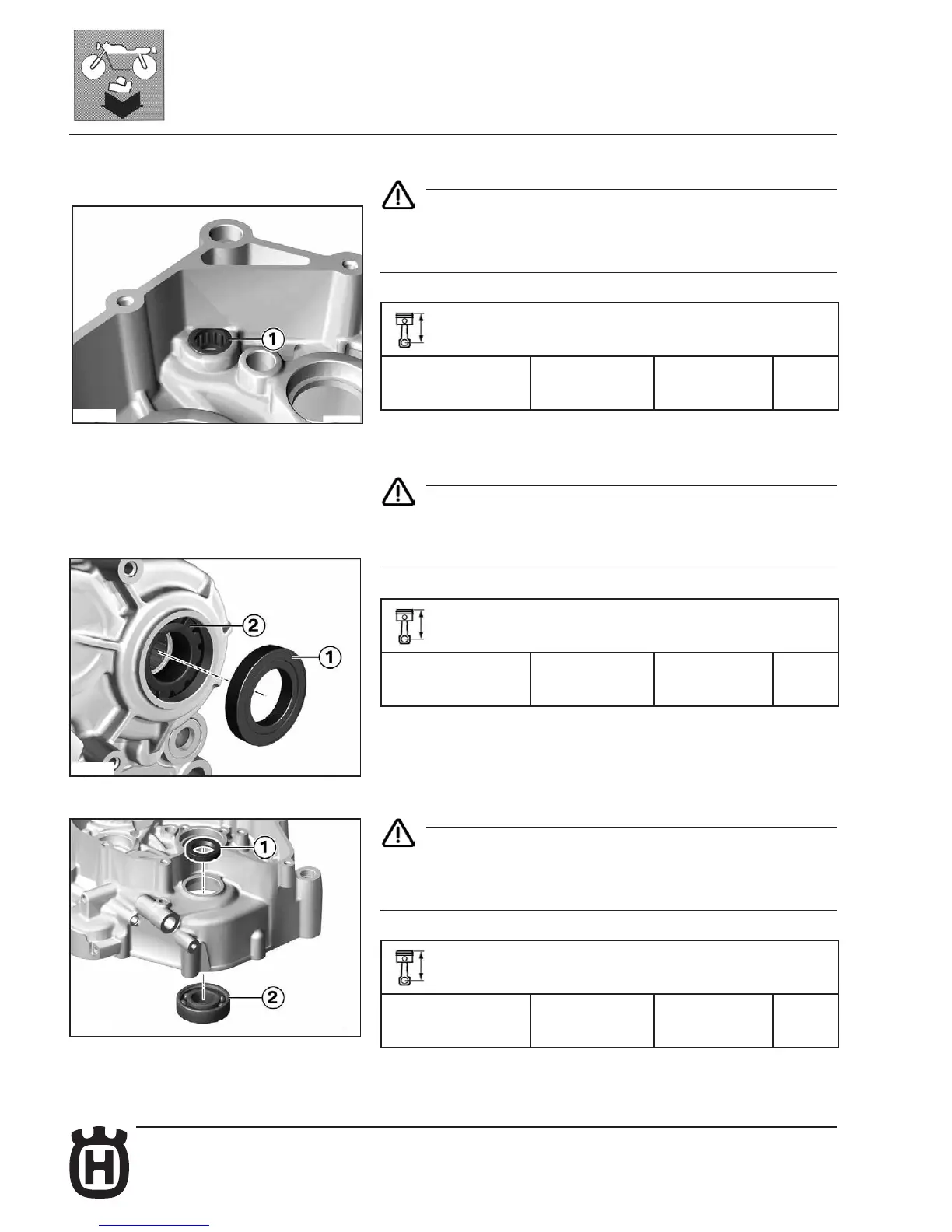

Gearbox shaft right bearing assembly
Caution
Temperature differences as well as casing overheating may
lead to structure changes and to cracks due to internal stresses.
Evenly heat casing, making sure not to exceed the recommended value.
• Heat crankcase.
Technical specications
Release/connection
temperature
180 °C
• Fit bearing (1) using a suitable tool.
Gearbox output shaft left bearing assembly
Caution
Temperature differences as well as casing overheating may
lead to structure changes and to cracks due to internal stresses.
Evenly heat casing, making sure not to exceed the recommended value.
• Heat crankcase.
Technical specications
Release/connection
temperature
180 °C
• Fit bearing (2) using a suitable tool.
• Fit the new oil seal (1) using a suitable tool.
Gearbox output shaft right bearing assembly
Caution
Temperature differences as well as casing overheating may
lead to structure changes and to cracks due to internal stresses.
Evenly heat casing, making sure not to exceed the recommended value.
• Heat crankcase.
Technical specications
Release/connection
temperature
180 °C
• Fit bearing (2) using a suitable tool.
• Fit oil seal (1) using a suitable tool.
