Husqvarna TE511 - Oil Pump Shaft; Oil Pump Shaft Disassembly; Oil Pump Shaft Assembly

F1.66
H01886
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

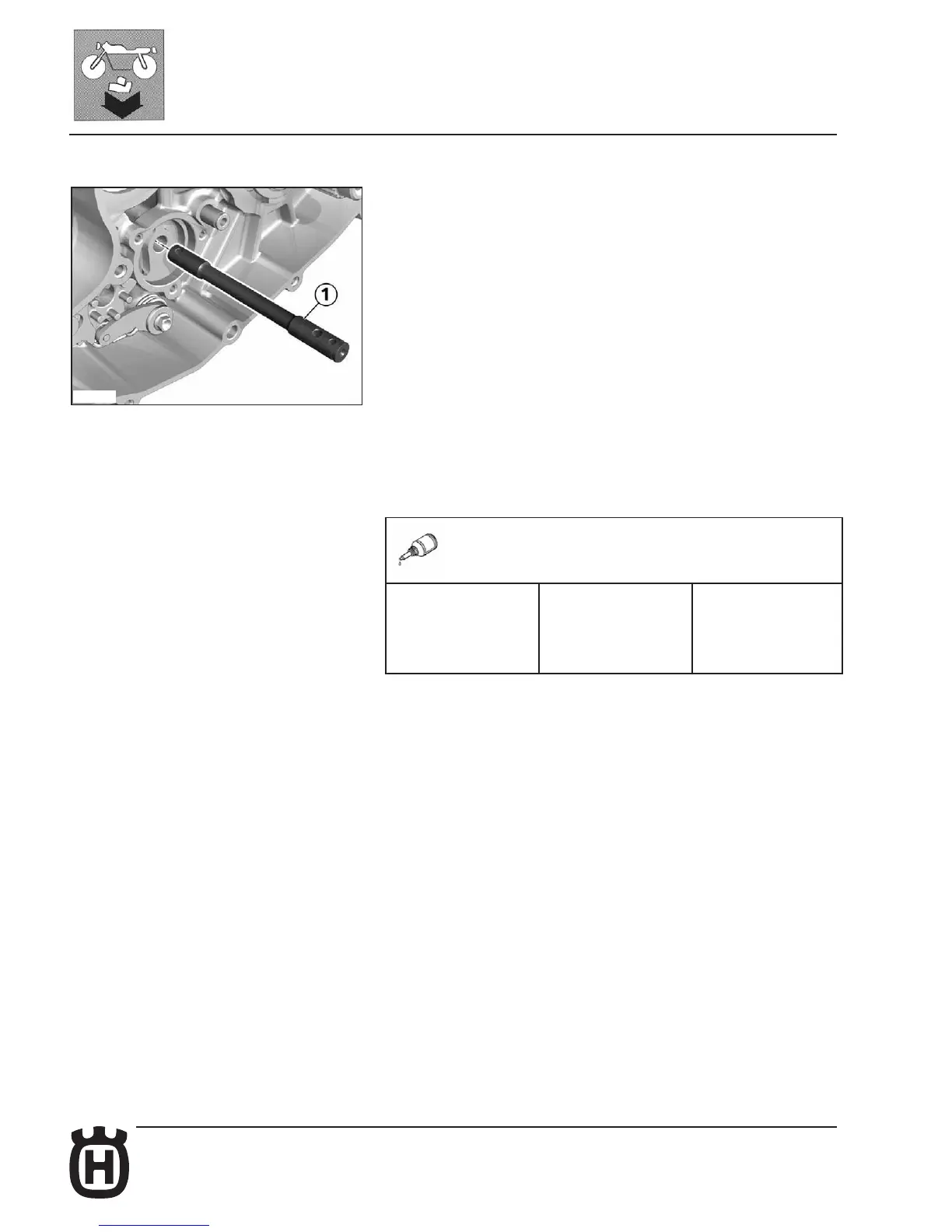

Oil pumps shaft disassembly
• Remove shaft (1) from crankcase.
Oil pumps shaft assembly
• Lubricate shaft (1), and assemble it inside crankcase. Shaft side with two
holes shall be positioned on engine right side.
Consumables
Molykote D Paste Clear solid lubricant for
metal parts
assembling and settling
Oil pumps shaft
