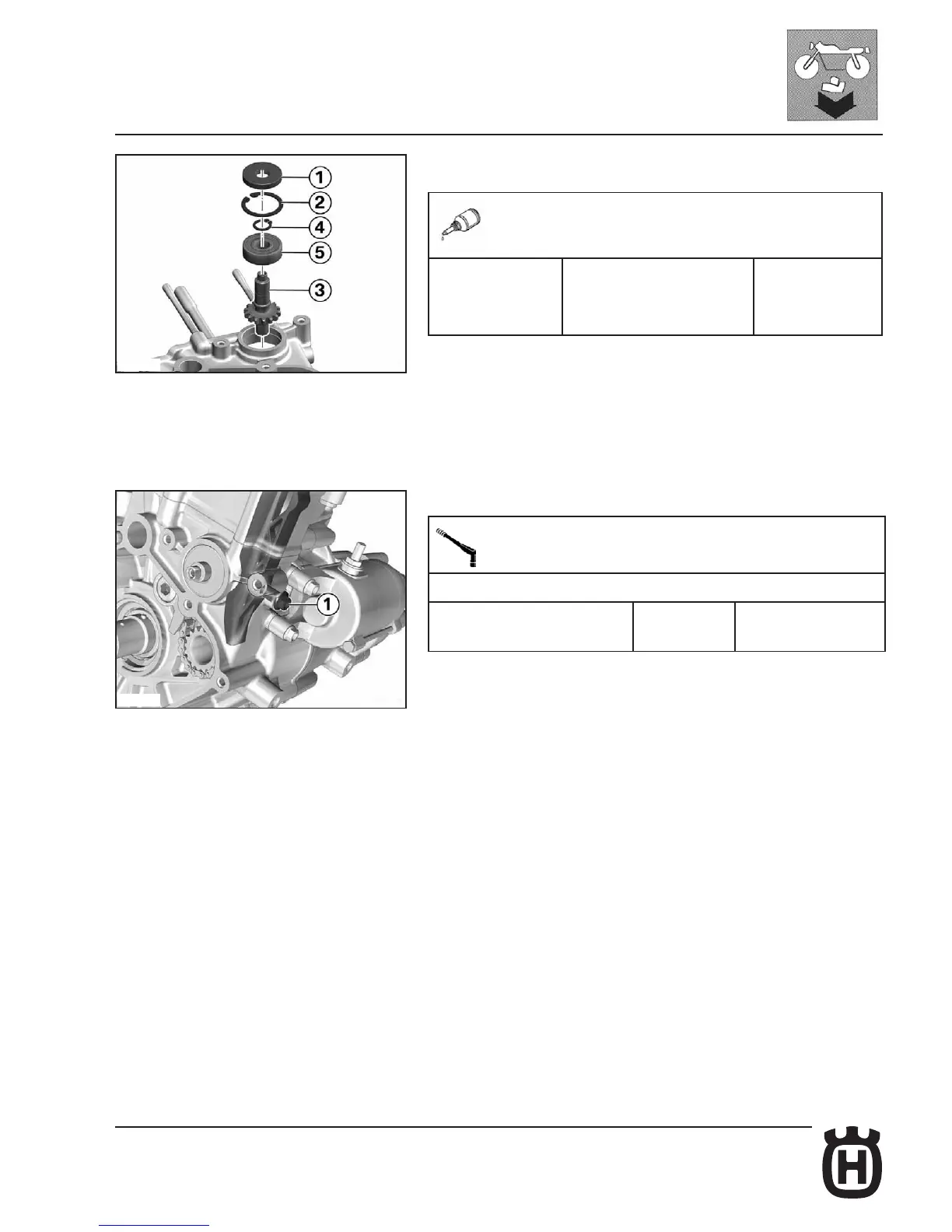

Coolant pump shaft assembly
• Lubricate bearing (5), and shaft (3).
Consumables
Molykote D Paste Clear solid lubricant for metal
part assembling and settling
• Assemble bearing (5) and stop ring (4) onto shaft (3).
• When tting the shaft, take special care to the timing chain.
• Fit shaft (3) with front bearing (5).
• Assemble the following parts:
- Stop ring (2)
- Oil seal (1)
Slider assembly in the lower area
• Fit screw with O-Ring (1).
Tightening torque gures
Front slider at crankcase lower part
M8 15 Nm
