Husqvarna TE511 - Crankshaft Sensor Replacement; Crankshaft Sensor Disassembly; Crankshaft Sensor Assembly

F1.24
H01960
H01960
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010
Crankshaft sensor replacement
Preliminary operations
Engine oil drainage
Engine left crankcase cover disassembly

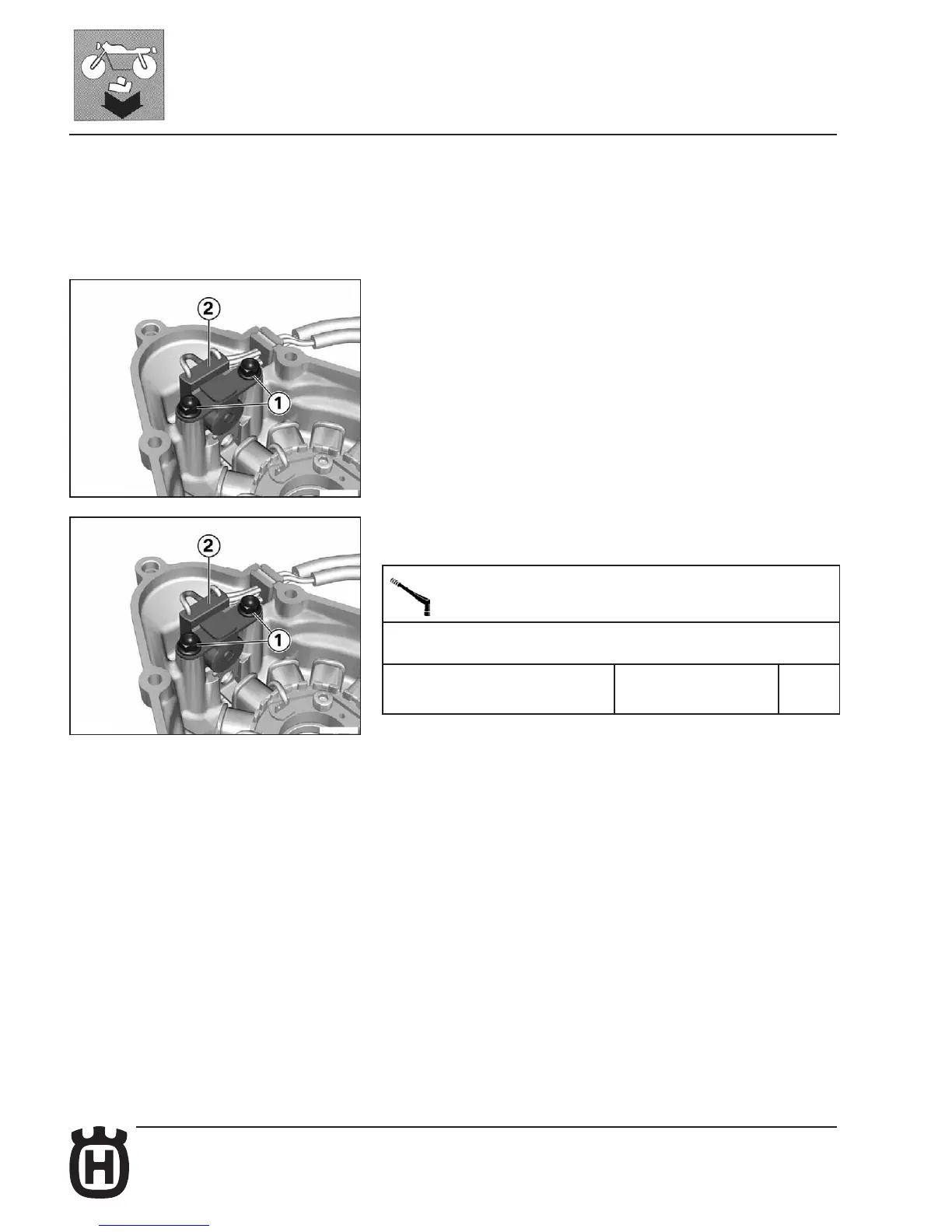

Crankshaft sensor disassembly
• Remove screws (1).
• Remove crankcase sensor (2).
Crankshaft sensor assembly
• Assemble crankcase sensor (2).
• Fit new screws (1).
Tightening torque gures
Pulse transducer onto engine left crankcase
cover
M5 x 12 - 10.9, Microincapsulated
screw replacement
6 Nm
