Husqvarna TE511 - Engine Guard Removal; Gear Shift Pedal Removal

E.31
H02479
1
1
2
H02480
1
2
H02481
1
2
1
st
edition (08-2010) _Rev. 11-2010

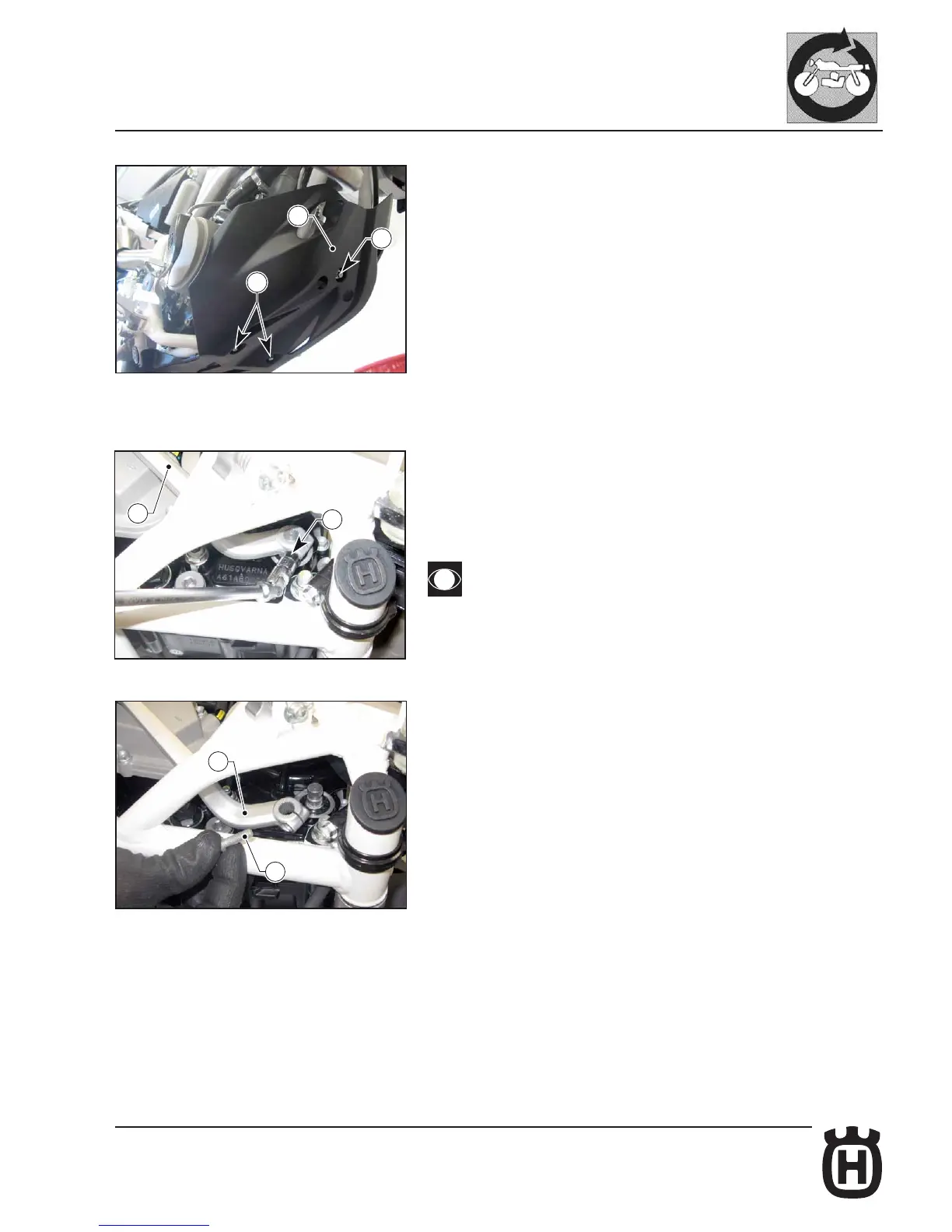

GENERAL PROCEDURES
Engine guard removal
- Using a 8 mm socket wrench, loosen the three screws (1), and remove engine
guard (2).
Gear shift pedal removal
- Remove chain and engine guard as indicated in the relevant paragraph.
- Engage the 2nd gear with the gear shift pedal (1)
- Using a 8 mm socket wrench, loosen screw (2), and remove gear shift pedal
(1).
on reassembly, tighten screw (2) to 10 Nm - 1.02 Kgm - 7.38 ft/lb.
