Husqvarna TE511 - Rear Chassis Removal

E.21
H02451
1
2
H02452
4
3
H02521
5
6
H02522
7
1
st
edition (08-2010) _Rev. 11-2010
GENERAL PROCEDURES

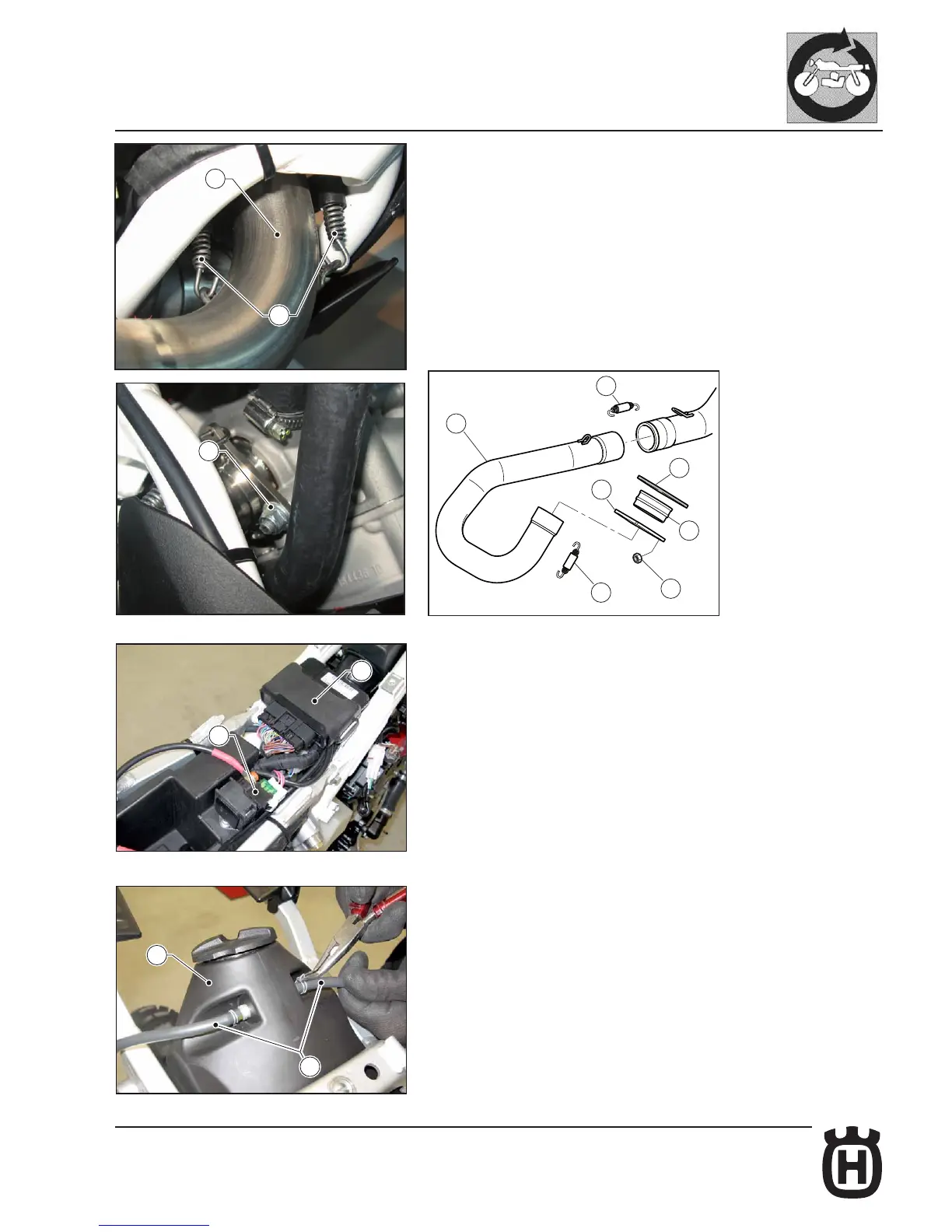

- Release springs (5), and remove manifold (6).
- Using a 12 mm Allen wrench, loosen the two nuts (7), then remove ange
(8), bushing (9), and gasket (10).
On reassembly, screw nuts (7) to a torque of 26 Nm - 2.65 Kgm - 19.18 ft/
lb
Rear chassis removal
- Remove saddle, side panels, number plate holder, rear mudguard, exhaust
silencer, and battery, as described in the relevant paragraphs.
- Disconnect control unit (1) and solenoid starter (2) from their mounts.
- Detach tank breather hoses (3) from tank (4).
H02523
6
3
10
8
9
7
5
