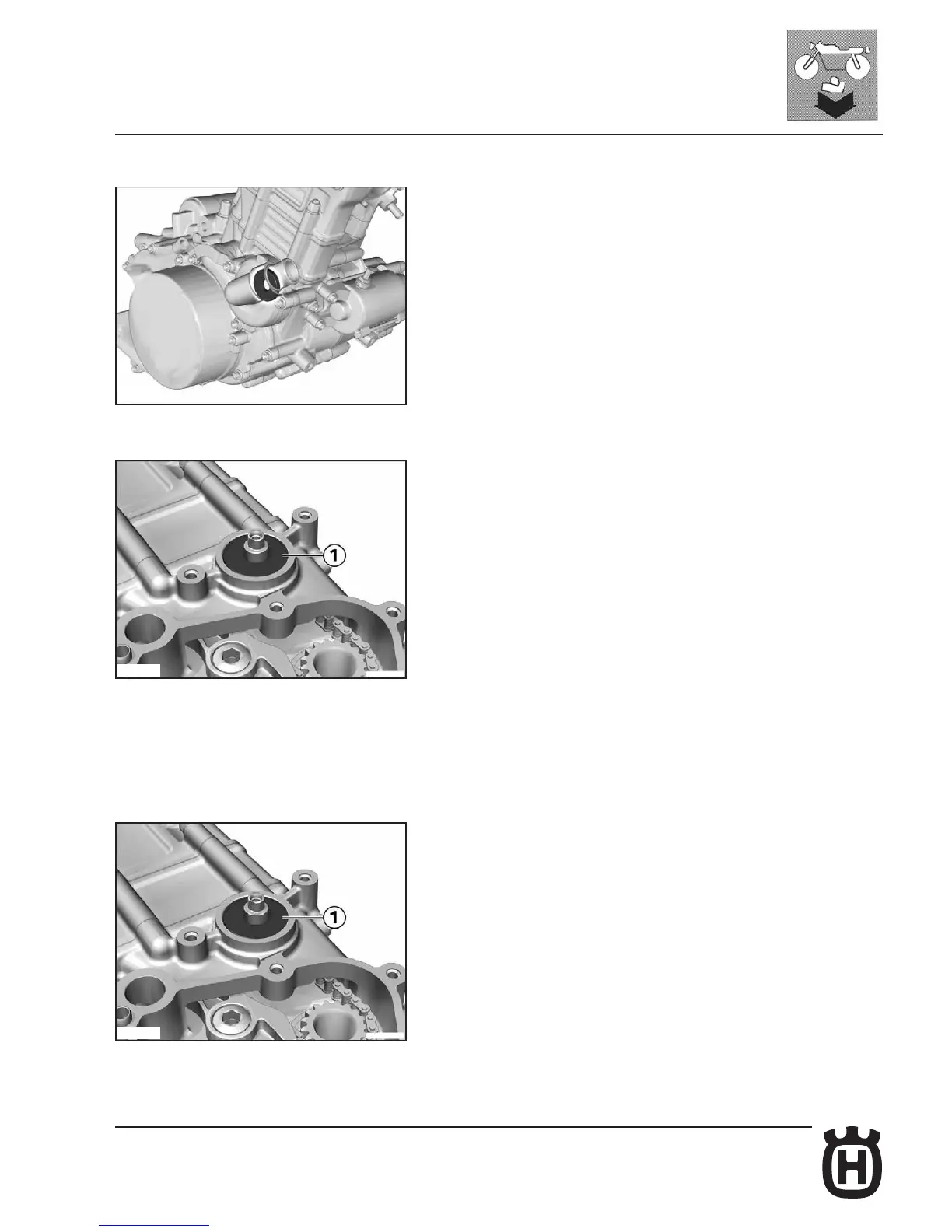

Coolant pump inside crankcase oil seal replacement (crankcase cover removed)
Coolant pump control rear oil seal disassembly
• Remove oil seal (1).
Coolant pump control shaft check
Check
Result: Damaged or worn shaft
Action:
Replace coolant pump drive (crankcase cover removed)
Coolant pump control rear oil seal assembly
• Clean oil seal seat.
• Fit oil seal (1) using a suitable tool.
