Husqvarna TE511 - Electric Cooling Fan Removal (te - TXC - SMR); Horn Removal (te - SMR)

E.28
1
H02470
2
3
H02471
1
H02472
2
2
3
1
st
edition (08-2010) _Rev. 11-2010
GENERAL PROCEDURES

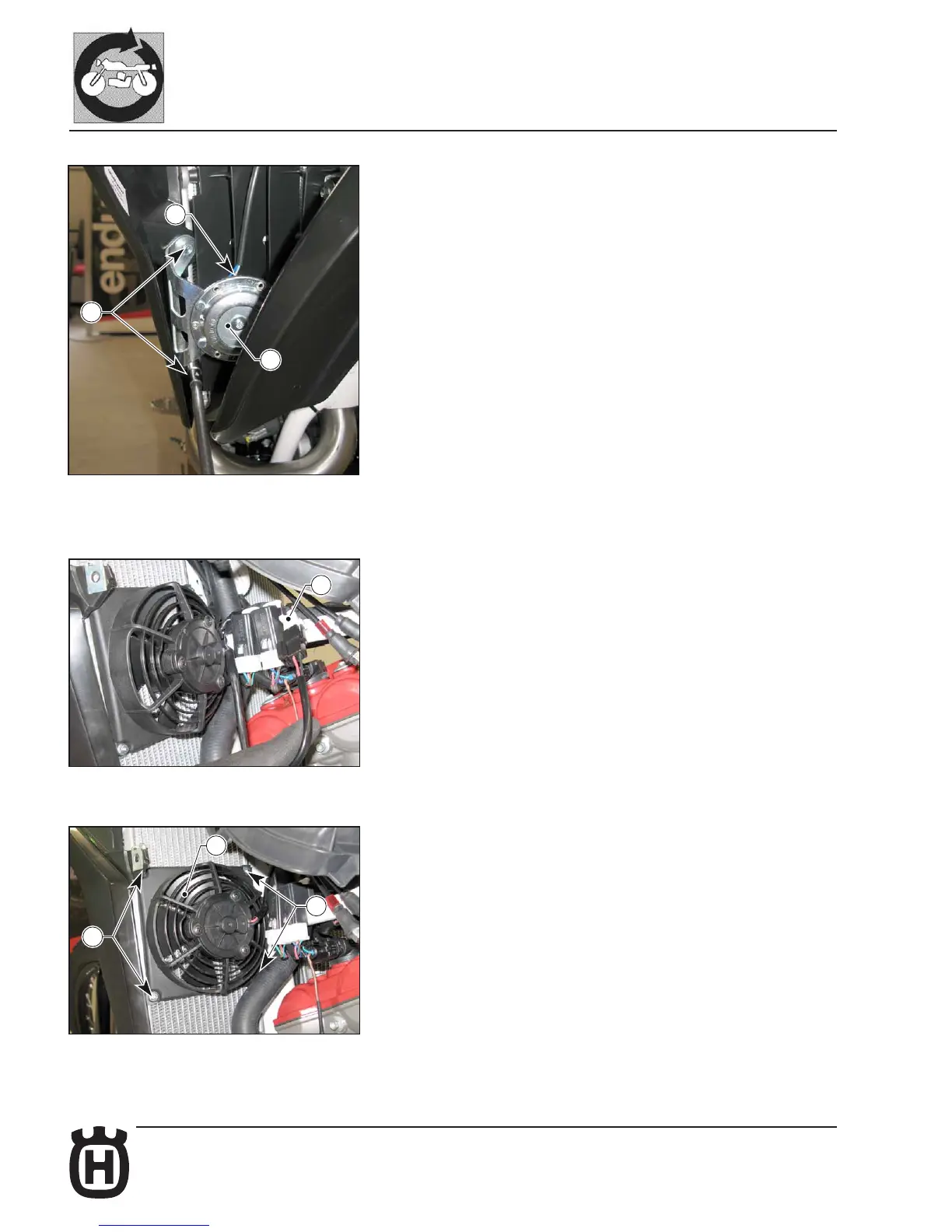

Horn removal (TE - SMR)
- Loosen the two screws (1) (using a 8 mm wrench)
- Disconnect connector (2) and remove horn (3).
Electric cooling fan removal (TE - TXC - SMR)
- Remove saddle rst, and then the left side panel.
- Disconnect the connector (1).
- Loosen the four screws (2) (with a 7 mm wrench), and remove electric fan
(3).
