KAYABA fork adjustment (TC - TE - TXC)

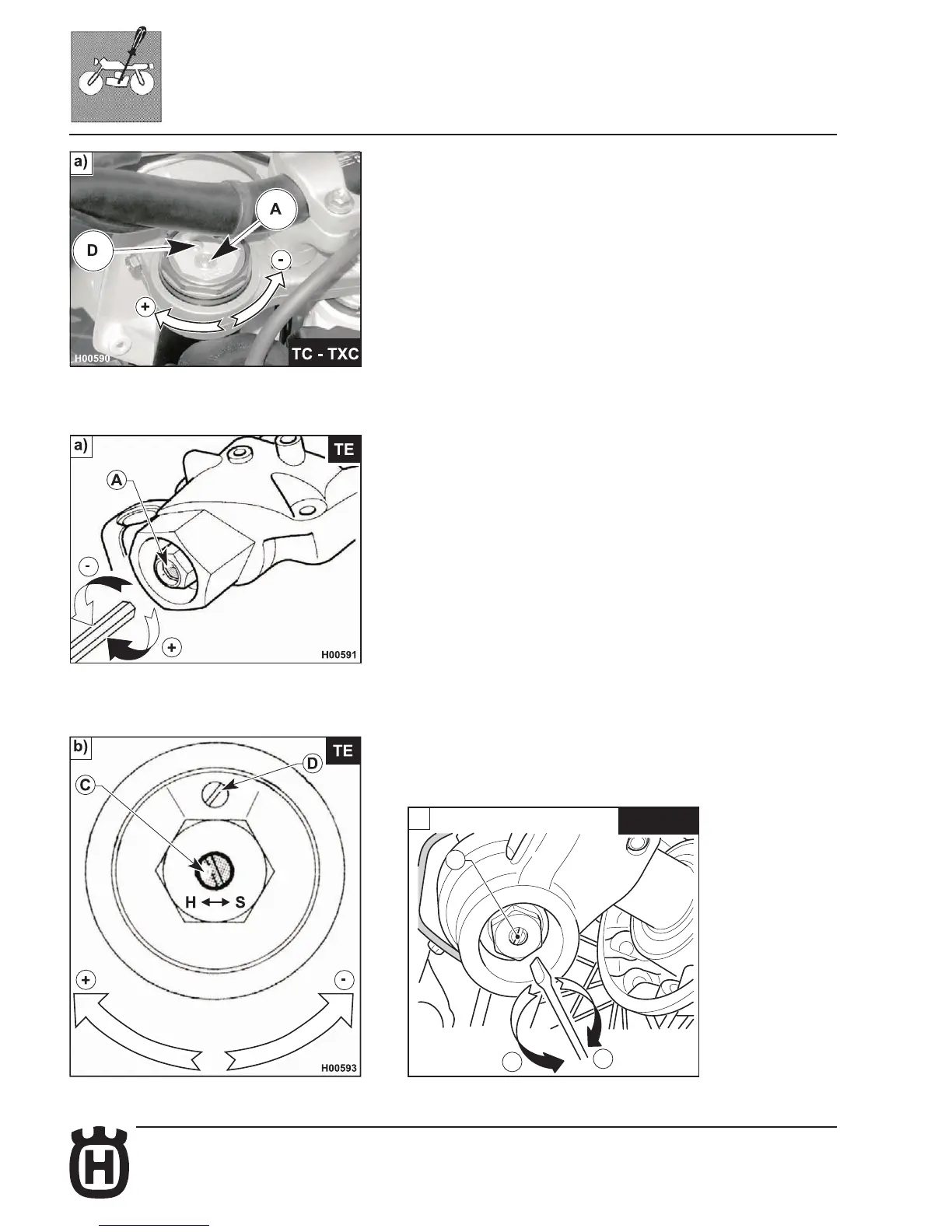

- COMPRESSION (Fig. a)
(TC - TXC: TOP ADJUSTER; TE: LOWER ADJUSTER)
TC-TXC= -11 clicks
TE= -10 clicks
To reset standard calibration, turn adjuster screw (A) clockwise to reach the fully
closed position; then turn it back by the mentioned clicks. In order to obtain a
smooth braking action, turn the adjuster counter clockwise. Vice versa to obtain
a harder braking action.
- REBOUND (Fig. b)
(TC - TXC: LOWER ADJUSTER; TE: TOP ADJUSTER)
TC-TXC= -10 clicks
TE= -14 clicks
To reset standard calibration, turn adjuster (C) clockwise to reach the fully closed
position; then, turn it back by the mentioned clicks. In order to obtain a smooth
braking action, turn the adjuster counter clockwise. Vice versa to obtain a harder
braking action.
- BLEEDING (Fig. a/b) (to carry out after each competition, or monthly).
Set the motorcycle on a central stand, release the fork fully extended and loosen
the bleed valve (D). Once this operation is over, tighten the valve.
NOTE: Never force the adjuster screws beyond the maximum open and closed
positions.
