Husqvarna TE511 - Basic Component Removal

E.3
H006112
2
H006110
2
H006109
1
H006111
1
1
st
edition (08-2010) _Rev. 11-2010
GENERAL PROCEDURES
Saddle removal

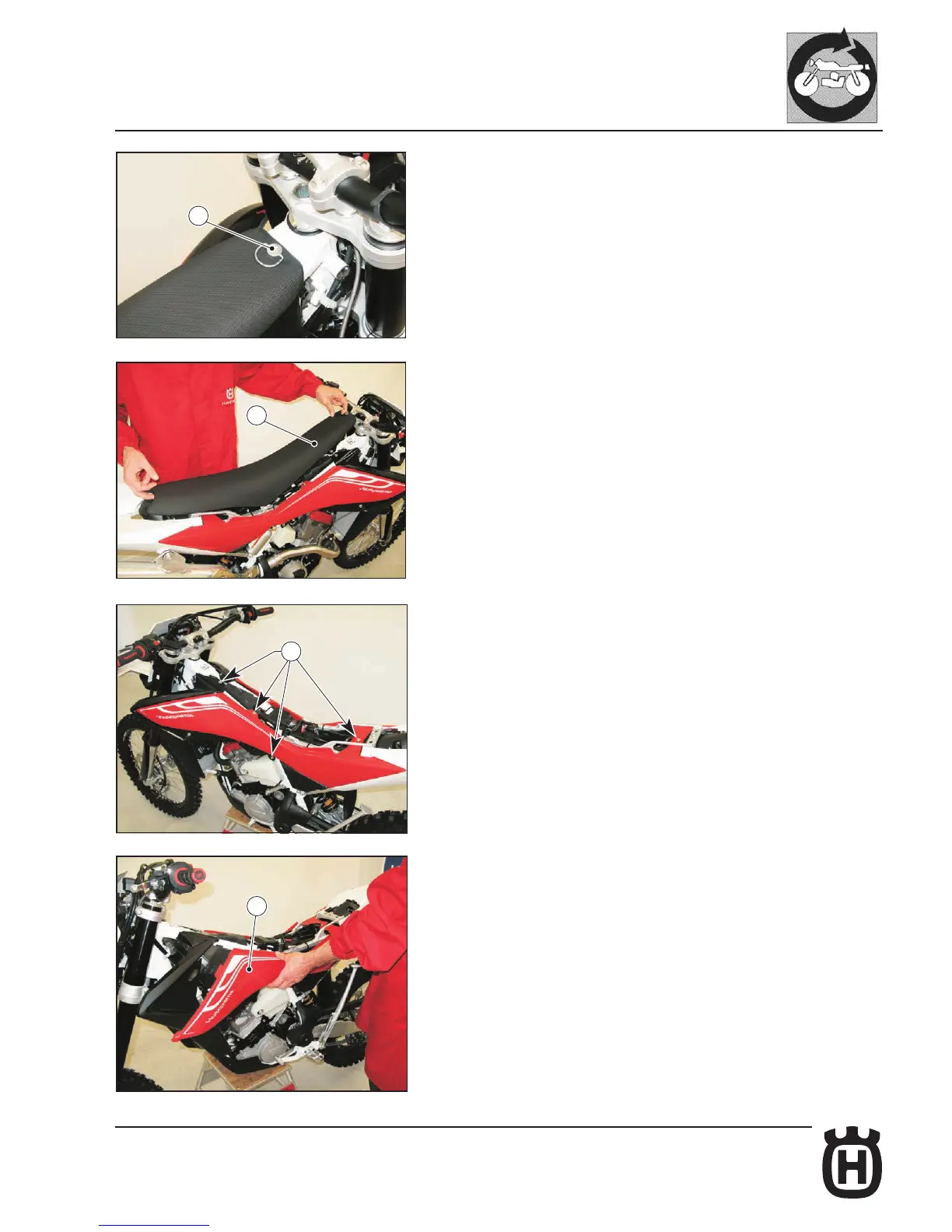

Turn pin (1) counter clockwise, and remove saddle (2) from chassis fastening.
Side panel removal
- Remove the saddle as described in the relevant paragraph.
- Left-hand side panel:
Loosen the four screws (1) using an 8 mm wrench, and remove the side
panel (2).
