SETTINGS AND ADJUSTMENTS

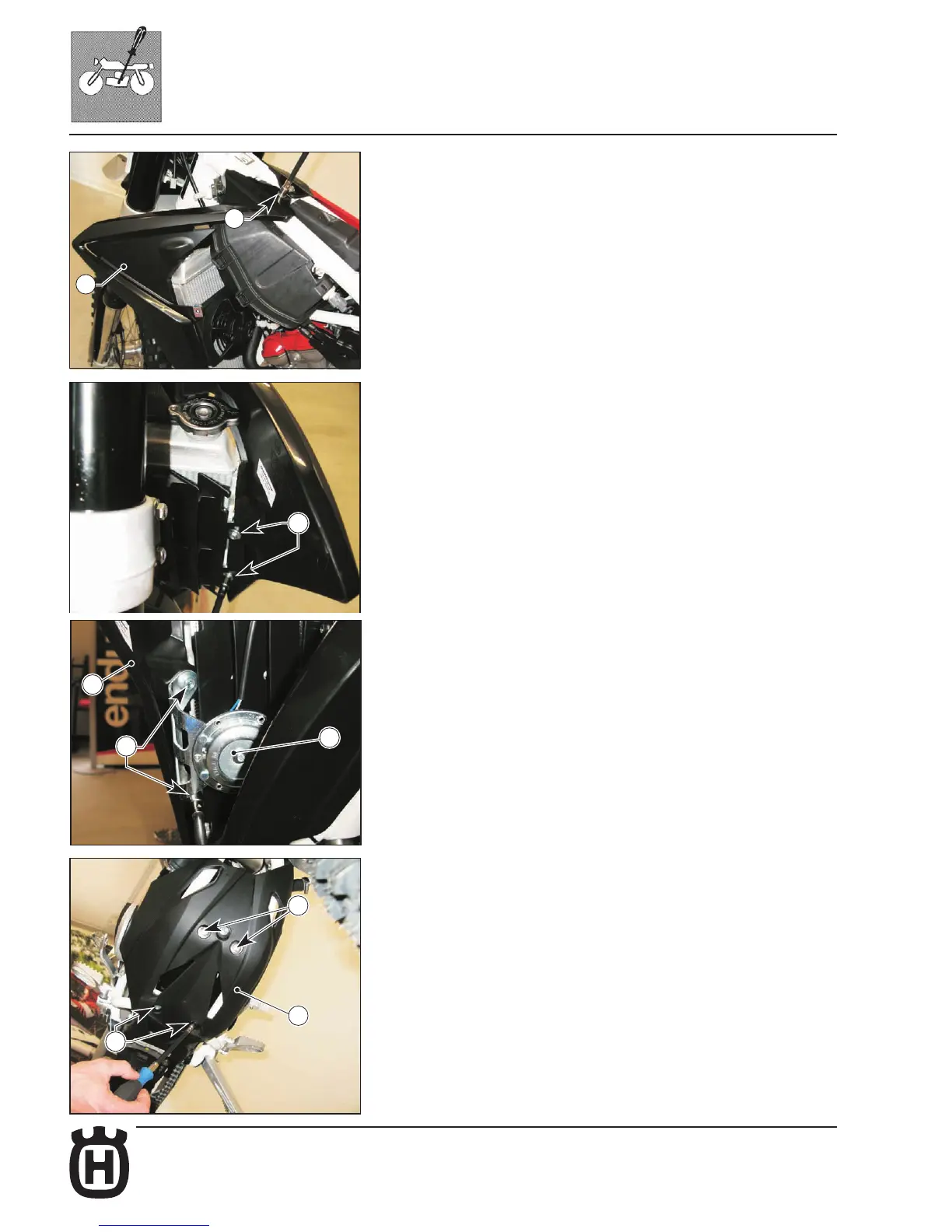

Scoop removal
- Remove the saddle and side panels, as described in the relevant para-
graphs.
- Left-hand side scoop:
Loosen the three screws (1) using an 8 mm wrench, and remove the scoop (2).
- Right-hand side scoop:
Loosen the two screws (3) (using an 8 mm wrench) and remove horn (4) and
scoop (5).
Engine guard removal
- Loosen the screws (1) using an 8 mm wrench, and remove the engine guard (2).
