Husqvarna TE511 - Control Gear Disassembly; Removing Crankshaft and Countershaft

F1.75
H01737
8000H5010
H01782
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

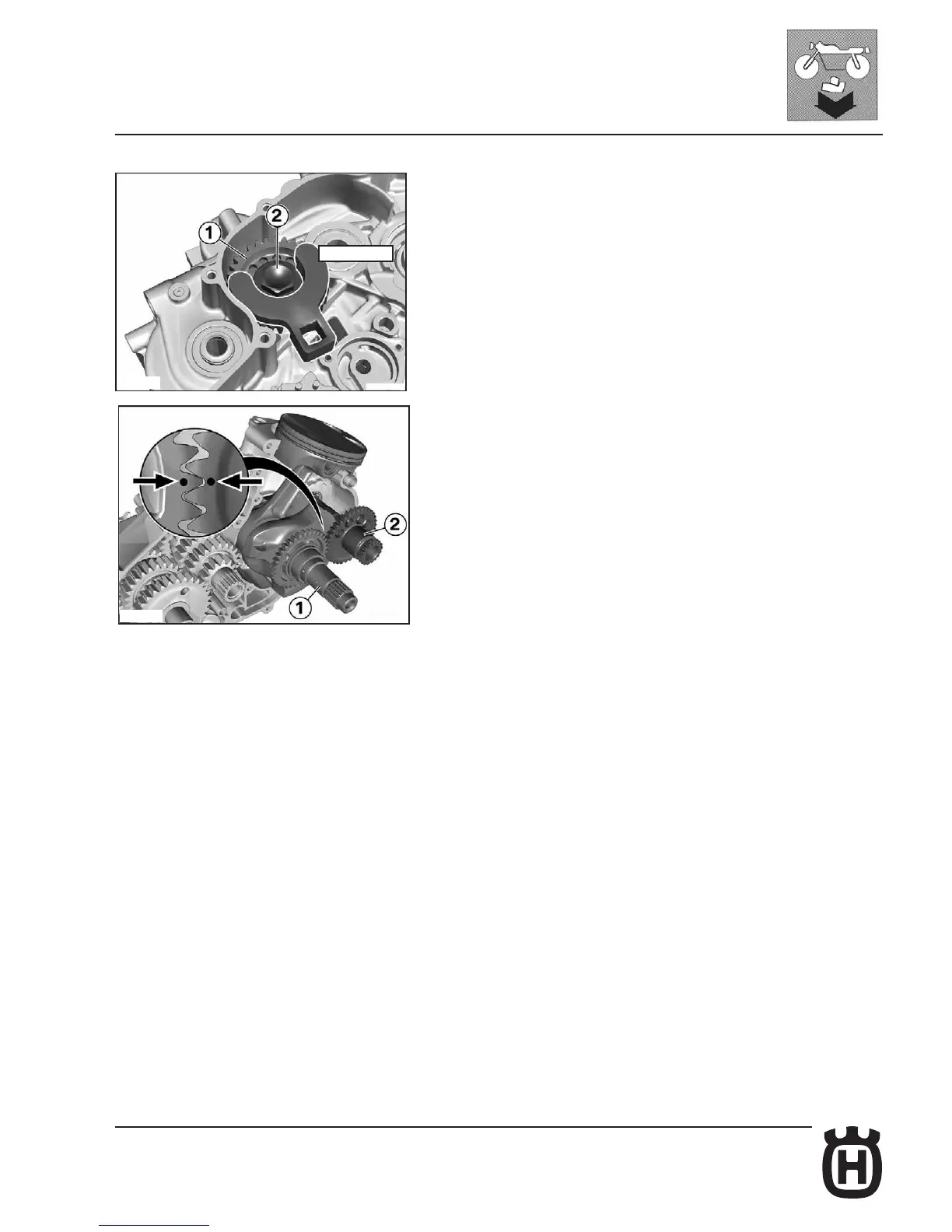

Control gear disassembly
• Lock control gear (1) using tool (N. 8000H5010) to prevent it from moving.
• Remove screw. Caution: LH thread (2).
• Remove control gear (1).
Remove crankshaft and countershaft
• Move crankshaft (1) and countershaft (2) reference marks (arrows) so as to
make them match.
• Remove countershaft and countershaft at the same time.
