Husqvarna TE511 - Air Filter Box Removal

E.29
1
H02473
H02477
3
2
H02474
4
1
st
edition (08-2010) _Rev. 11-2010
GENERAL PROCEDURES

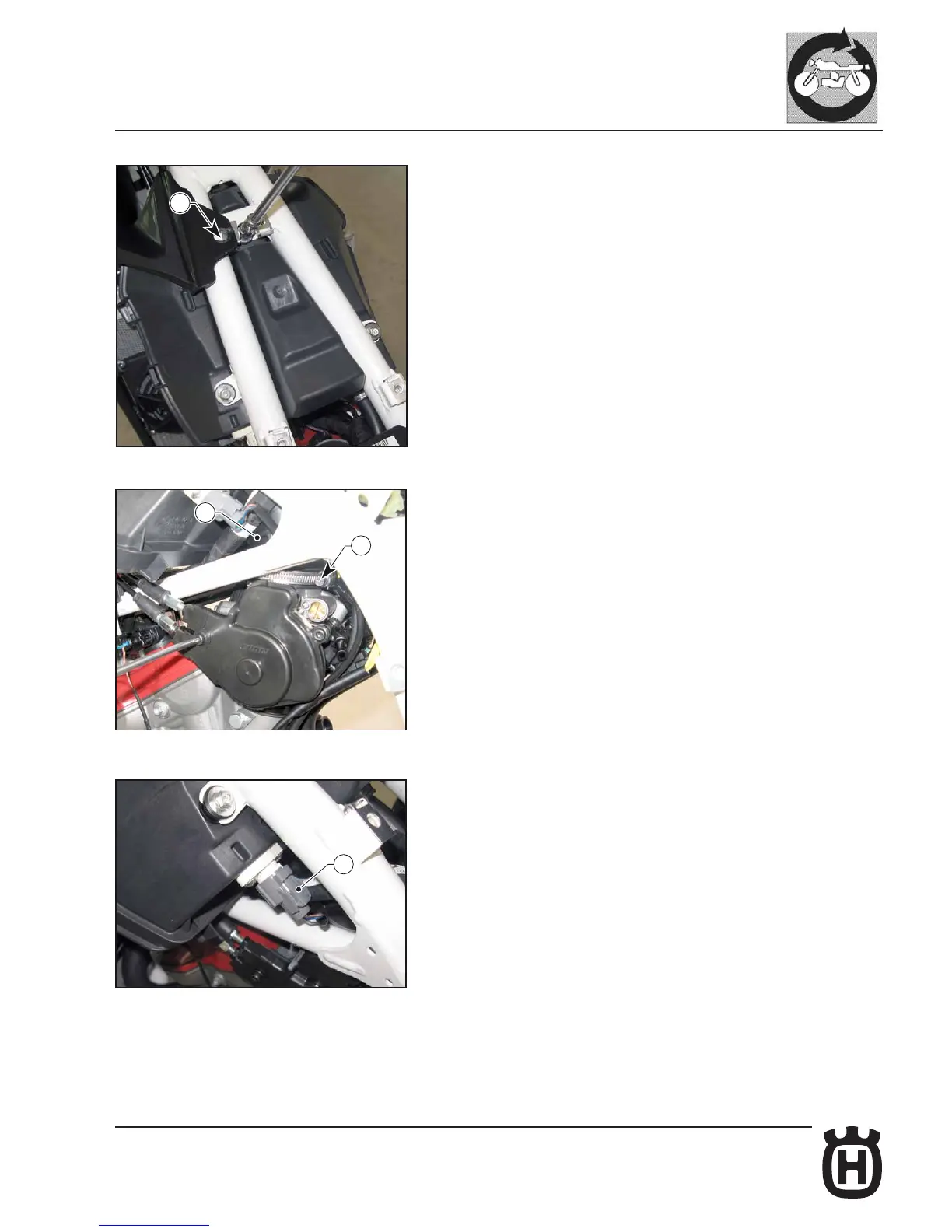

Air lter box removal
- Remove saddle, left and right side panels, lter, and voltage regulator, as
indicated in the relevant paragraphs.
- Loosen screw (1) (with a 8 mm wrench) securing left scoop.
- Loosen intake coupling (3) clamp (2), and slide coupling out from the front
side.
- Disconnect air temperature sensor connector (4).
