ELECTRICAL SYSTEM
1
st
edition (08-2010)_Rev. 11-2010

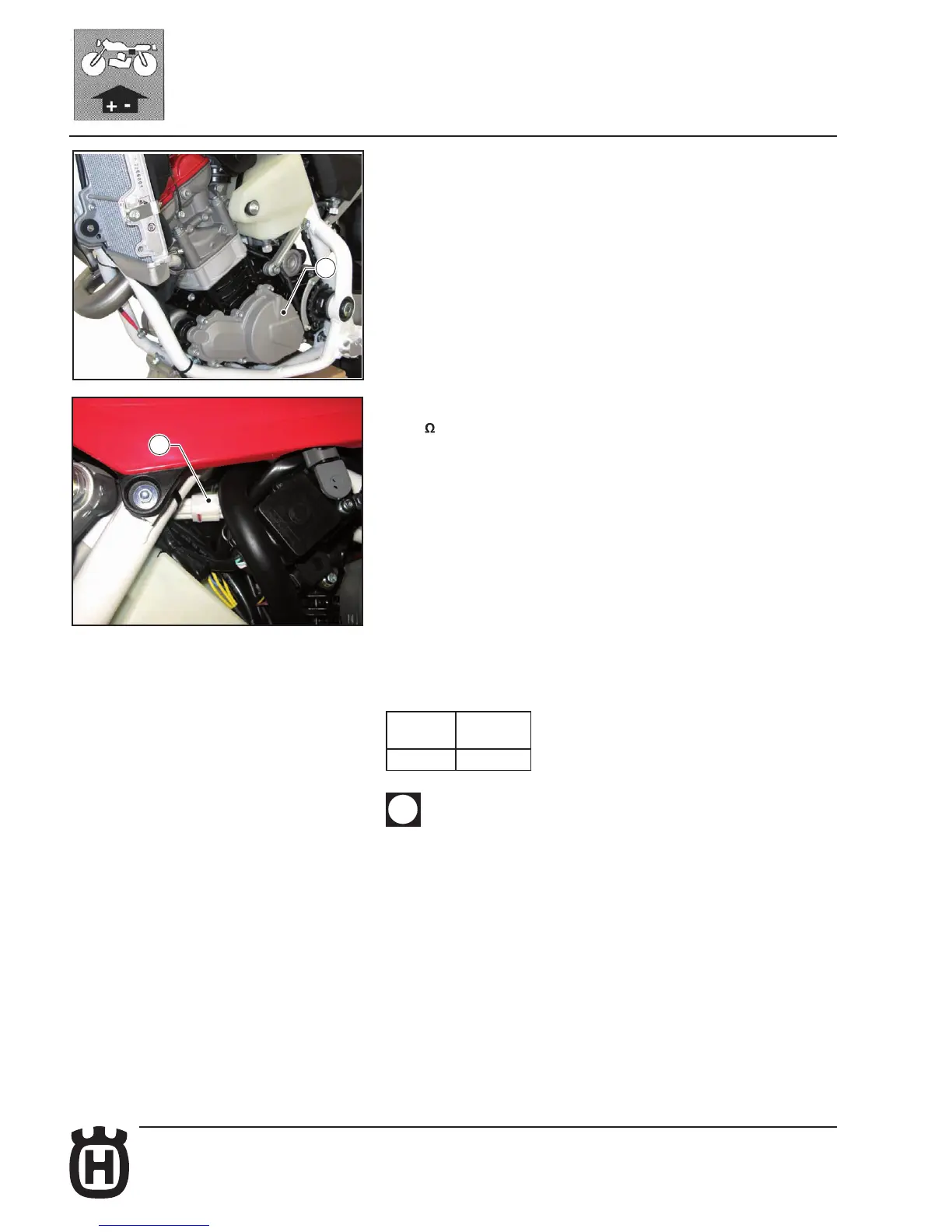

Generator stator windings resistance (1) inspection
Disconnect the stator coil connector from the wiring and measure resistance
with a meter.
1) Check that across the terminals of the connector (2), the value is about
0.8
.
If resistance is outside the specied limits, replace the complete generator.
Generator no-load performance
MAX 13A at 14V.
RPM A D.C.
(typical)
1900 11A
AT EACH ENGINE OVERHAUL, CLEAN FLYWHEEL ROTOR TO
REMOVE ANY DEBRIS SUSPENDED IN SWIRLING OIL AND
CAPTURED BY THE MAGNETS.
