Husqvarna TE511 - Gearbox Input Shaft Idler Gear Bearing Assembly; Gearbox Shaft Left Bearing Assembly

F1.93
H01906
H01905
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

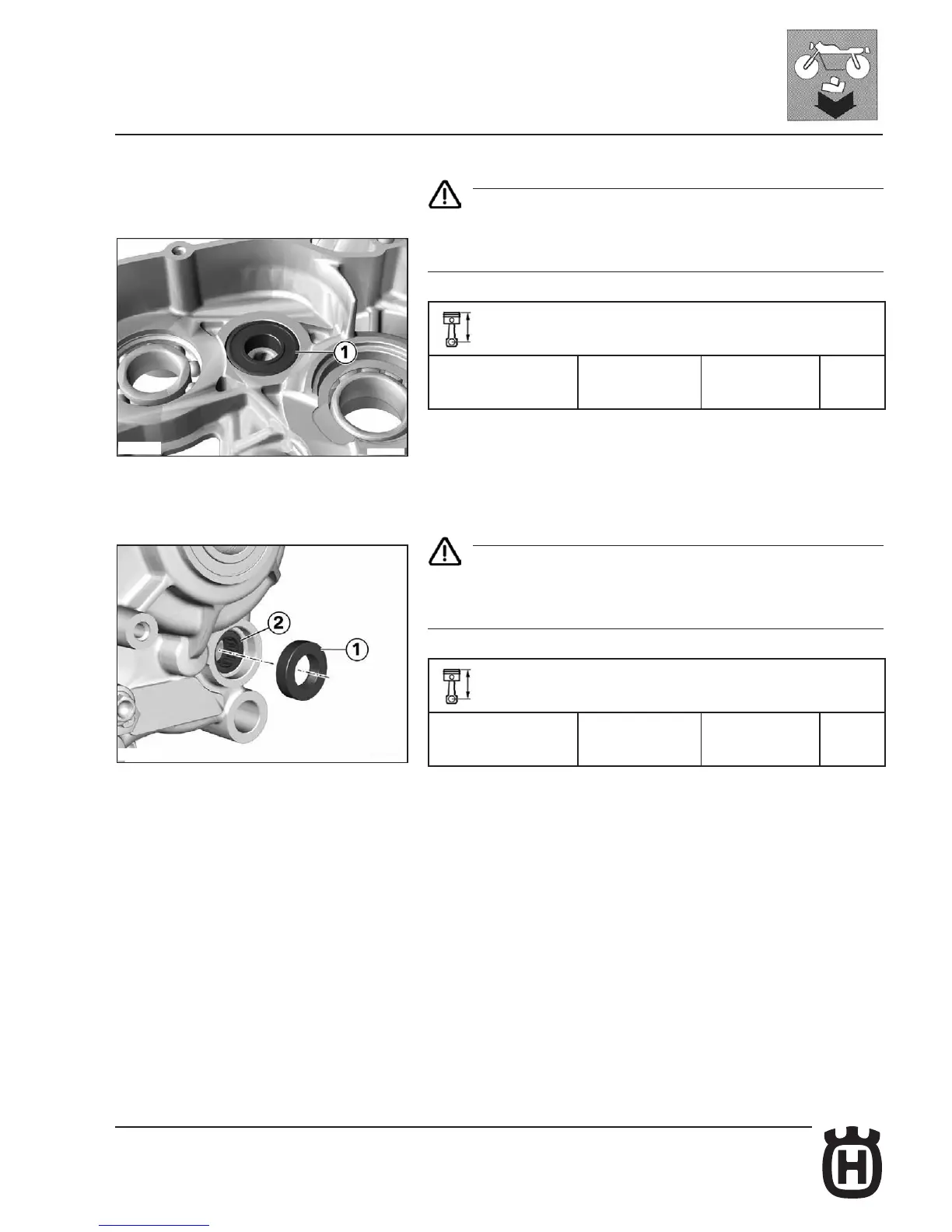

Gearbox input shaft idler gear bearing assembly
Caution
Temperature differences as well as casing overheating may
lead to structure changes and to cracks due to internal stresses.
Evenly heat casing, making sure not to exceed the recommended value.
• Heat crankcase.
Technical specications
Release/connection
temperature
180 °C
• Fit bearing (1) using a suitable tool.
Gearbox shaft left bearing assembly
Caution
Temperature differences as well as casing overheating may
lead to structure changes and to cracks due to internal stresses.
Evenly heat casing, making sure not to exceed the recommended value.
• Heat crankcase.
Technical specications
Release/connection
temperature
180 °C
• Fit bearing (2) using a suitable tool.
• Fit oil seal (1) using a suitable tool.
