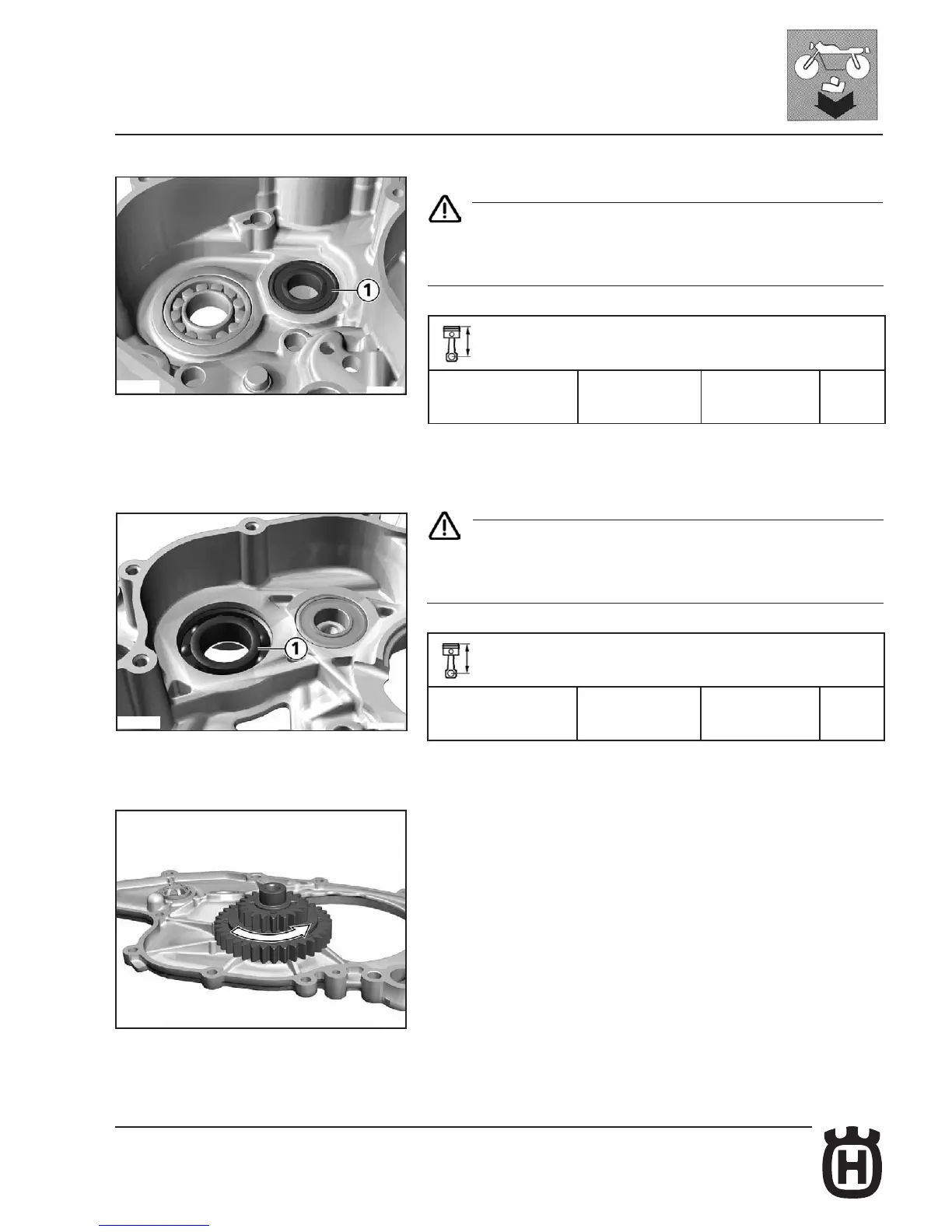

Husqvarna TE511 - Gearbox Input Shaft Left Bearing Assembly; Gearbox Input Shaft Right Bearing Assembly; Clutch Check Inside Primary Drive Unit

F1.95
H01901
H01900
H01803
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010
Gearbox input shaft left bearing assembly
Caution
Temperature differences as well as casing overheating may
lead to structure changes and to cracks due to internal stresses.
Evenly heat casing, making sure not to exceed the recommended value.
• Heat crankcase.
Technical specications
Release/connection
temperature
180 °C
• Fit bearing (1) - open side facing the crankcase - with a suitable tool.
Gearbox input shaft right bearing assembly
Caution
Temperature differences as well as casing overheating may
lead to structure changes and to cracks due to internal stresses.
Evenly heat casing, making sure not to exceed the recommended value.
• Heat crankcase.
Technical specications
Release/connection
temperature
180 °C
• Fit bearing (1) using a suitable tool.
Clutch check inside primary drive unit
Check
• Check idler gear
Result: Idler gear swings.
Action:
Replace idler gear (crankcase cover removed)
