Husqvarna TE511 - Dashboard Replacement (te - SMR)

M.47
H06330
2
H06331
3
1
ELECTRICAL SYSTEM
1
st
edition (08-2010)_Rev. 11-2010
Dashboard replacement (TE - SMR)
Remove the headlamp fairing as explained under "Headlamp bulb replace-
ment".

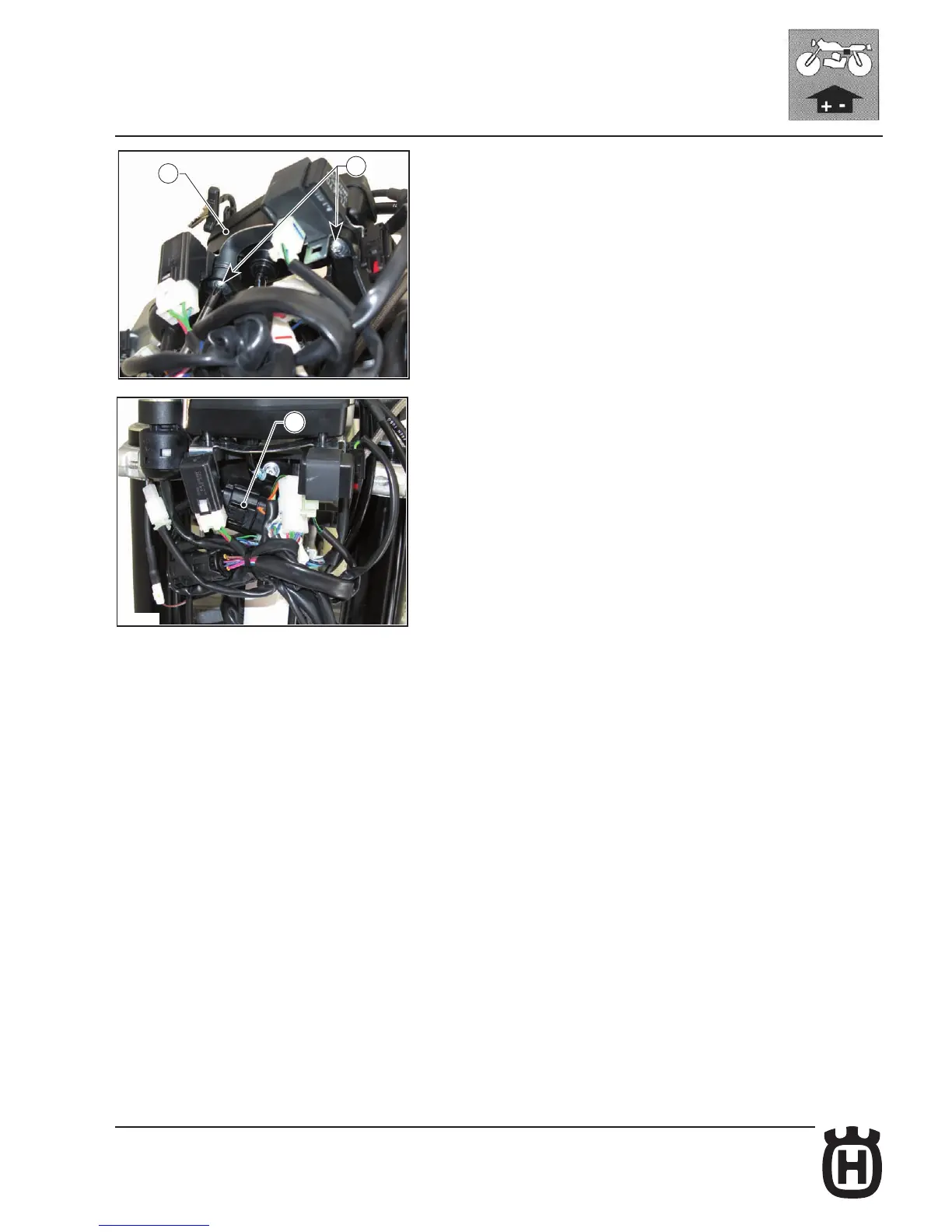

Remove the two retaining screws (1) securing the dashboard to its bracket,
disconnect the connector (2) and remove the dashboard (3).
To ret the dashboard, reverse the disassembly procedure.
