Husqvarna TE511 - Valves Assembly

F1.51
H01769
H01762
H01764
8000H5018
8000H5019
8000H5017
8000H5015
8000H5016
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

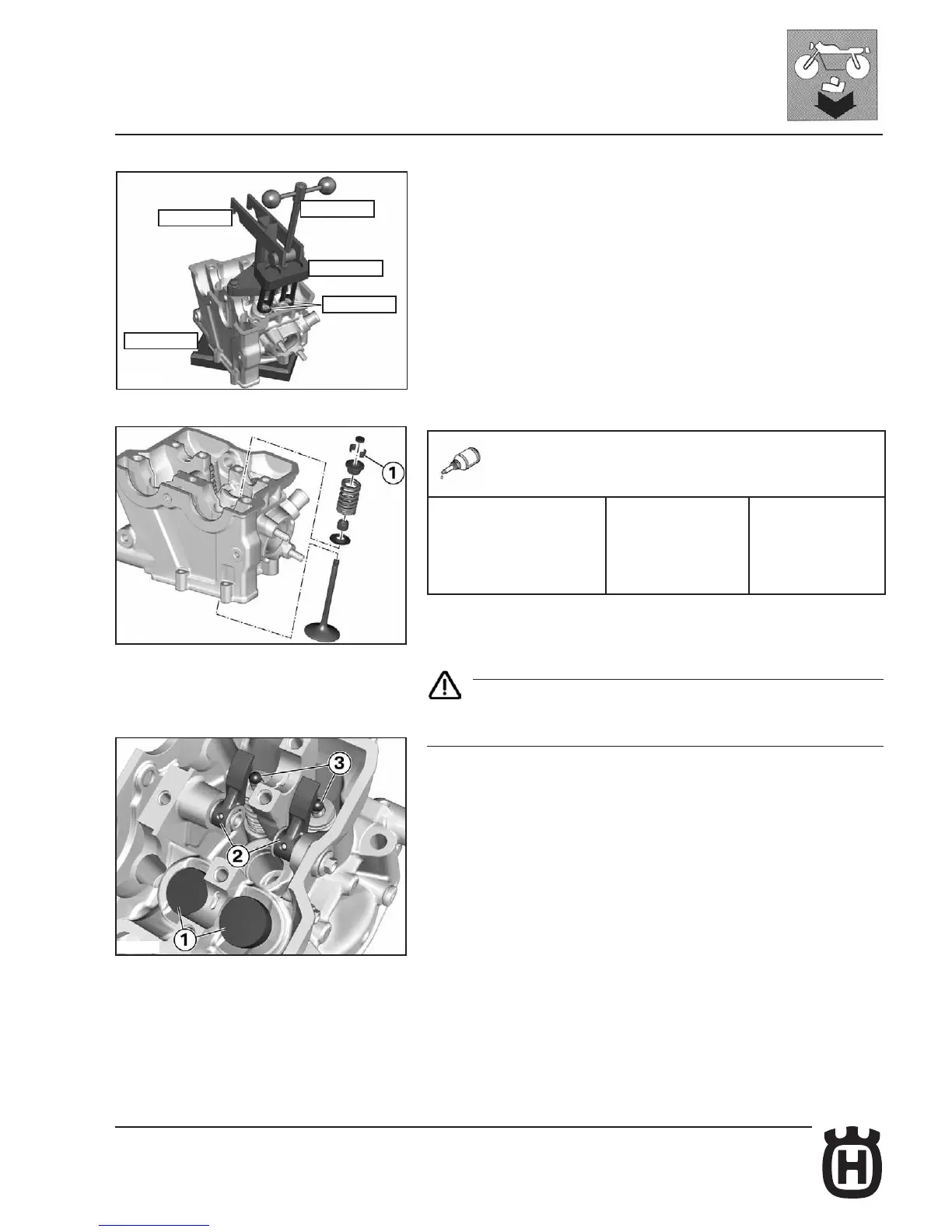

Valve assembly
• Assemble cylinder head onto support plate (N. 8000H5015).
• Fit supporting bracket (N. 8000H5017), spindle with handle (N.8000H5016),
connector (N. 8000H5018), and compression plate (N.8000H5019).
• Precharge springs using the compression plate (N. 8000H5019).
• Lubricate and assemble valve collets (1).
Consumables
Molykote D Paste Clear solid lubricant
for metal part
assembling and
settling
• Remove supporting plate (N. 8000H5015), supporting bracket (N. 8000H5017),
spindle with handle (N. 8000H5016), connector (N. 8000H5018), and com-
pression plate (N. 8000H5019).
Caution
Half balls can fall inside cylinder head oil ducts.
Plug ducts with a cloth.
• Assemble half ball (3) on the relevant valve, and overturn rocker arm (2).
• Assemble plate on the relevant valve.
• Assemble bucket type tappet (1) on the relevant valve.
