ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

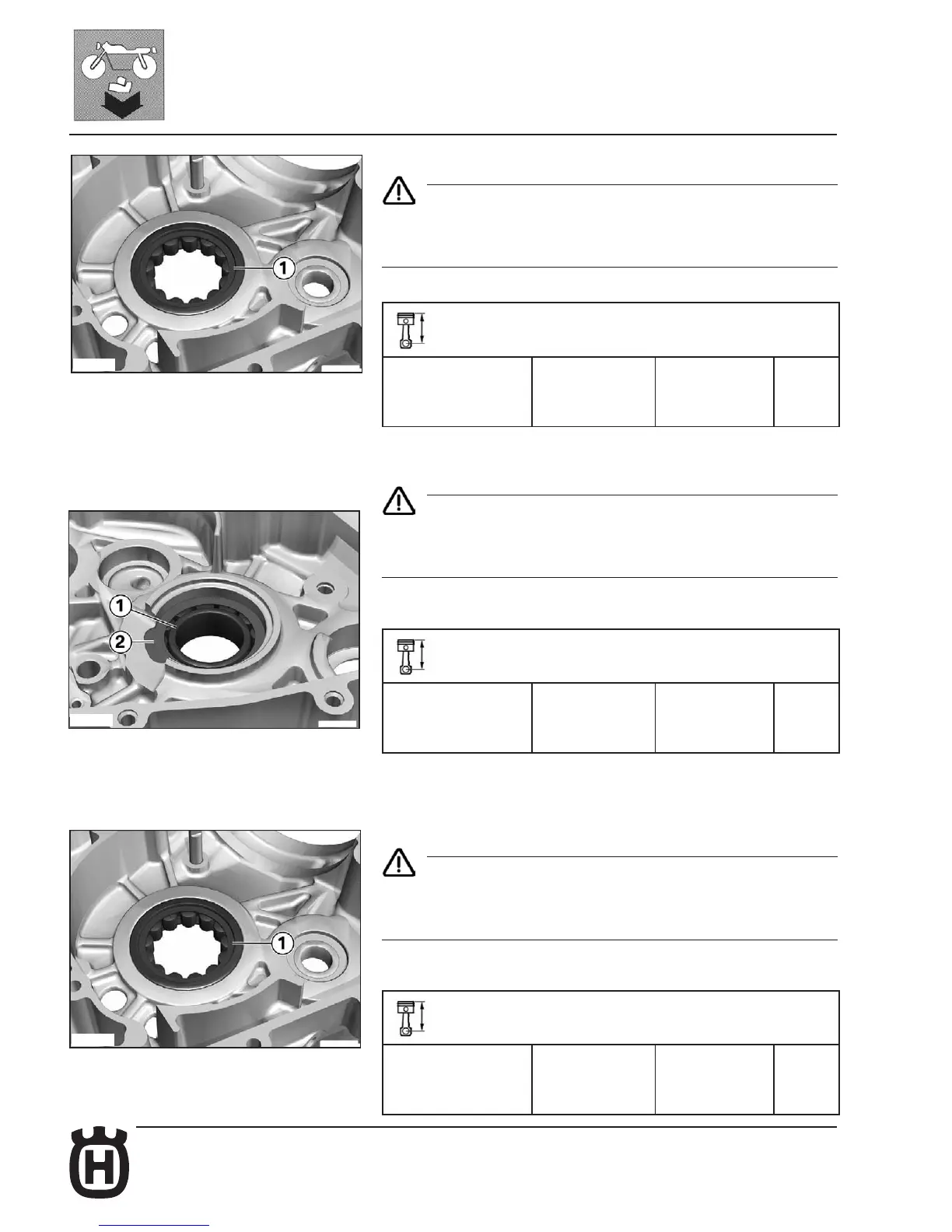

Crankshaft left bearing disassembly
Caution
Temperature differences as well as casing overheating may lead to structure
changes and to cracks due to internal stresses.
Evenly heat casing, making sure not to exceed the recommended value.
• Heat crankcase.
Technical specications
Release/connection
temperature
180 °C
• Remove bearing (1).
Crankshaft right bearing disassembly
Caution
Temperature differences as well as casing overheating may lead to structure
changes and to cracks due to internal stresses.
Evenly heat casing, making sure not to exceed the recommended value.
• Heat crankcase.
Technical specications
Release/connection
temperature
180 °C
• Remove bearing (1).
• Remove ring (2).
Crankshaft left bearing assembly
Caution
Temperature differences as well as casing overheating may lead to structure
changes and to cracks due to internal stresses.
Evenly heat casing, making sure not to exceed the recommended value.
• Heat crankcase.
Technical specications
Release/connection
temperature
180 °C
