Husqvarna TE511 - Replacing Clutch Disengagement Bearing; Clutch Disengagement Bearing Disassembly; Clutch Disengagement Bearing Assembly; Checking the Clutch Pack Thickness

F1.32
H01989
H01989
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

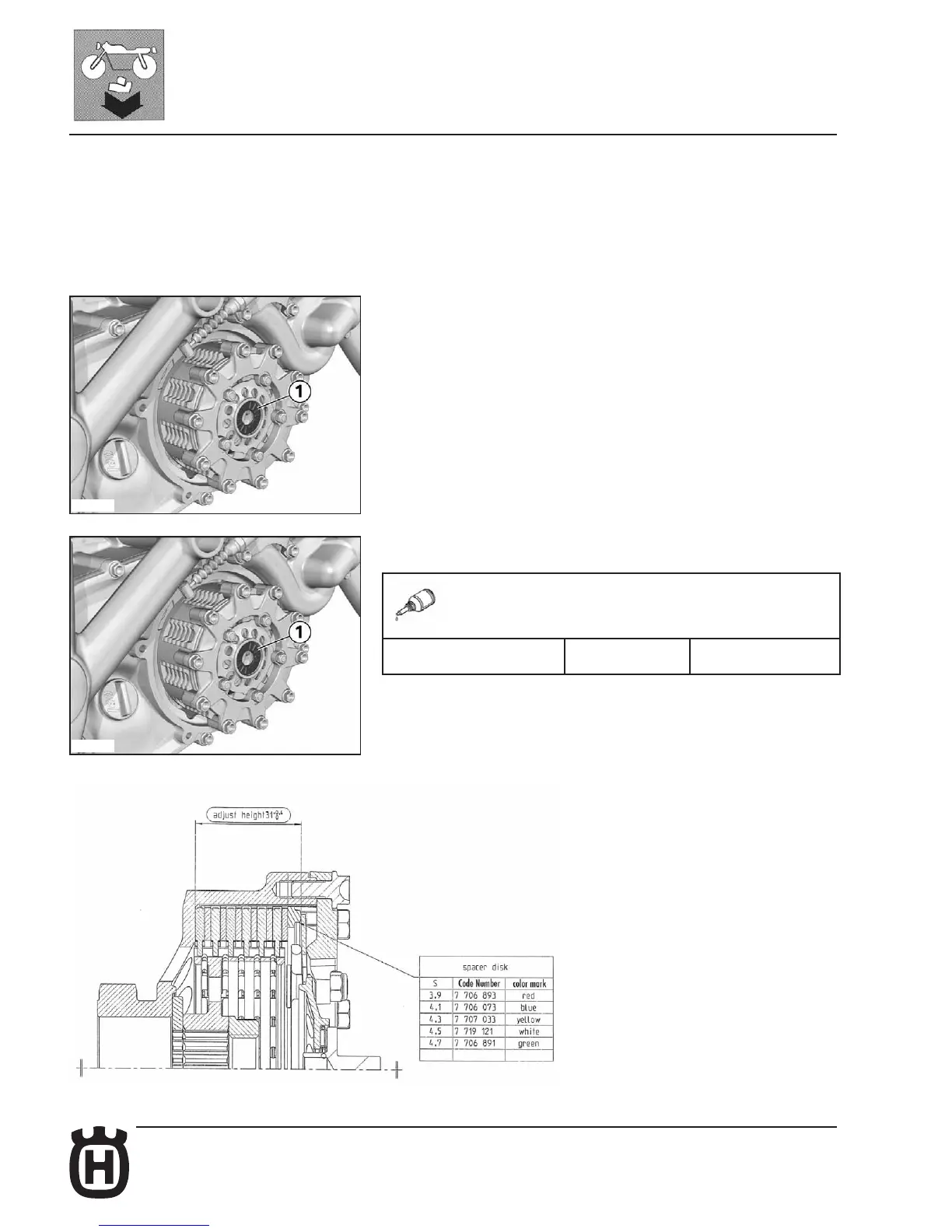

Replacing clutch disengagement bearing
Preliminary operations
Engine oil drainage
Clutch cover disassembly
Mushroom-type disengagement element disassembly
Clutch disengagement bearing disassembly
• Remove disengagement bearing (1).
Clutch disengagement bearing assembly
• Lubricate disengagement bearing (1), and assemble it.
Consumables
Castrol GPS SAE 10W-40 Engine oil
Checking the clutch pack thickness
• Clutch plates pack thickness must be L=31 +0.4/-0; if this size is reduced due
to wear and tear, it is possible to restore it using the shims indicated in the
table.
